Monitor Scan Tool Data

  1. Connect scan tool to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON"
  3. Press the brake pedal.
  4. Monitor the "STOP LAMP SWITCH" parameter on the scan tool.

    Specification: Lateral G sensor: ± 0 G, YAW rate Sensor: ± 0 deg/s

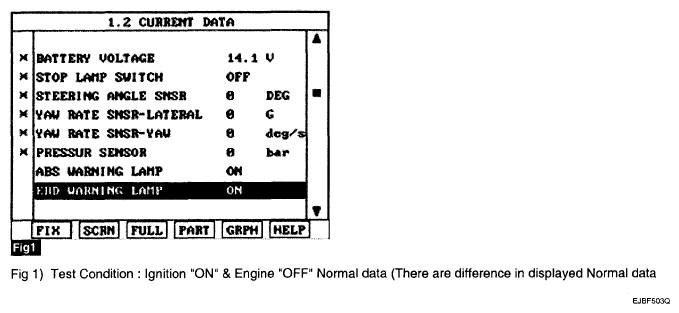

    Fig 1: Scan Tool Display - EBD Warning Lamp
    G04883886Courtesy of KIA MOTORS AMERICA, INC.
  5. Whenever brake pedal is pushed down, is the brake switch's scan tool data changed ON/OFF?

    YES

    • Fault is intermittent caused by poor connection in Yaw Rate & Lateral G sensor harness and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination.

    NO
