Charging System: Alternator: Removal

  1. Disconnect the battery negative terminal first, then the positive terminal.
  2. Disconnect the alternator connector, and remove the cable from alternator "B" terminal.
  3. Remove the drive belt.
  4. Pull out the through bolts and then remove the alternator (A).

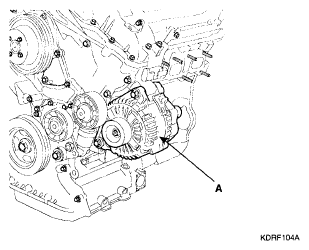

    Fig 1: Locating Alternator
    G04882955Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
