Monitor Scan Tool Data

Connect scan tool to Data Link Connector (DLC)
Warm up engine to normal operating temperature
Monitor "Oil Temperature" parameter on the scan tool.

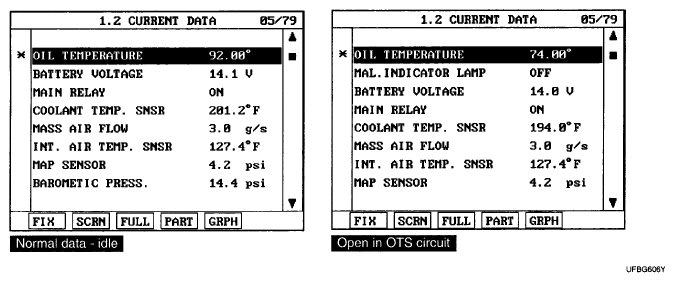

Fig 1: Scan Tool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
Is the current data displayed correctly?
YES
- Fault is intermittently caused by poor contact in the sensor and/or PCM connector or non cleared PCM memory after repair. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace if necessary and go to "VERIFICATION OF VEHICLE REPAIR ".
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
