Monitor Scan Tool Data

Warm-up engine to normal operating temperature.
NOTE: Evaporative Emissions Systems (EVAP) Leak Tests can be run by the Scan Tool.
The tests are automated and provide either a pass-fail result or directions to check for DTCs.
Install scan tool and clear DTC
Perform "EVAP LEAKAGE TEST" mode referring to enable conditions as below

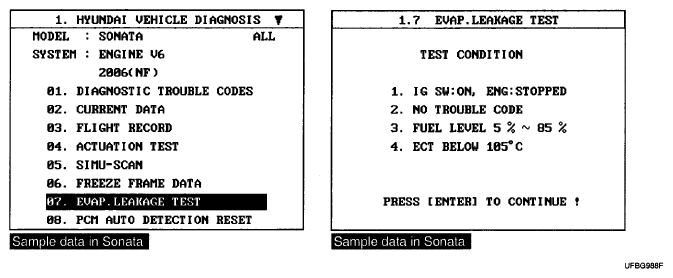

Fig 1: Scan Tool Display Screen - EVAP Leakage Test
Courtesy of KIA MOTORS AMERICA, INC.
Monitoring for (pending) DTC by performing" DIAGNOSTIC TROUBLE CODES" or "MONITORING TEST RESULTS". Is the same DTC set ?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
