Monitor Scan Tool Data

  1. Ignition "OFF".
  2. Connect scan tool and Engine "ON".
  3. Monitor "FLS" parameter on Current Data.

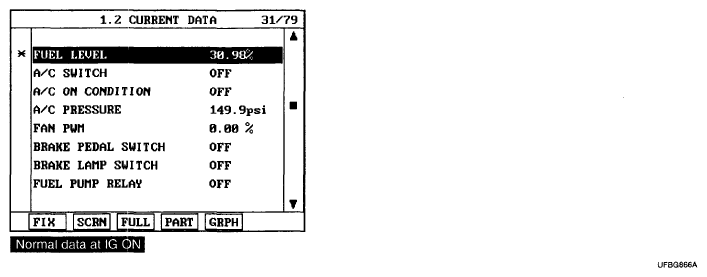

    Fig 1: Scan Tool Display Screen - Fuel Level
    G04883488Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the "FLS" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in Sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
