Monitor Scan Tool Data

  1. Ignition "OFF"
  2. Connect scan tool and Engine "ON"
  3. Monitor items which affect idle RPM on scan tool.

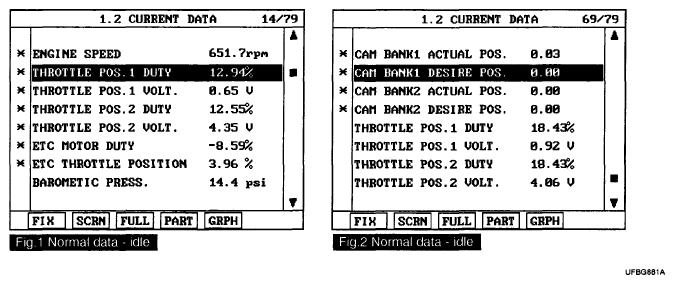

    Fig 1: Scan Tool Display Screen - Throttle Position 1 Duty
    G04883505Courtesy of KIA MOTORS AMERICA, INC.
  4. Are those items on scan tool displayed correctly?

    YES

    NO

    • Check DTCs related to Mass airflow sensor (MAF), Injectors, Throttle position sensor (TPS), Purge control solenoid valve (PCSV), Acceleration position sensor (APS), Heated oxygen sensors (HO2S), ETS system
    • Perform all repairs associated with those codes and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
