Monitor Scan Tool Data

  1. Ignition "OFF"
  2. Connect scan tool and Engine "ON"
  3. Check whether Air-Con pressure is rising during accelerating.

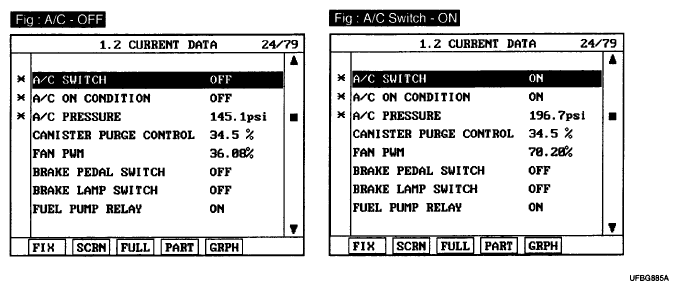

    Fig 1: Scan Tool Display Screen - A/C Switch
    G04883509Courtesy of KIA MOTORS AMERICA, INC.
  4. Are those items on scan tool displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in Sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
