Component Inspection: Notes

Check resistance of ETS Motor
1. IG "OFF"
2. Disconnect ETS motor & TPS connector.
3. Measure resistance between terminal 2 and 3 of ETS motor & TPS connector. (Component Side)
  Specification: Approx. 1.275-1.725Ω @ 23°C (73.4°F)

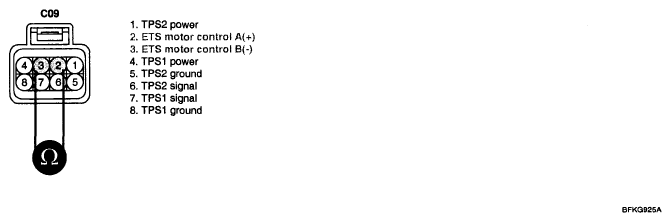

  Fig 1: Measuring Resistance Between Terminal 2 And 3 Of ETS Motor And TPS Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured resistance within specifications?
  YES
  - Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE: There is a memory reset function on scan tool that can erase optional parts automatically detected and memorized by PCM.
  Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others

  NO
  - Substitute with a known-good ETC and check for proper operation. If the problem is corrected, replace ETC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
