Monitor Scan Tool Data

  1. Connect scan tool to DLC. (Data Link Connector)
  2. Warm up the engine to normal operating temperature.
  3. Monitor "APS1 & APS2" parameters on the scan tool.
    VOLTAGE CHART

    Pedal Position Output Voltage (V) [Vref = 5.0V]
    APS1 APS2
    C.T  0.7-0.8V 0.275-0.475V
    W.O.T  3.8-4.4V 1.75-2.35V

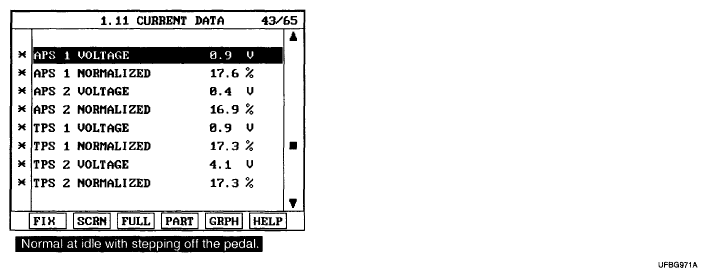

    Fig 1: Scan Tool Display Screen - APS1 Voltage
    G04883586Courtesy of KIA MOTORS AMERICA, INC.
  4. Are those "APS1 & APS2" parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in Sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
