Rear Wheel Speed Sensor: Components

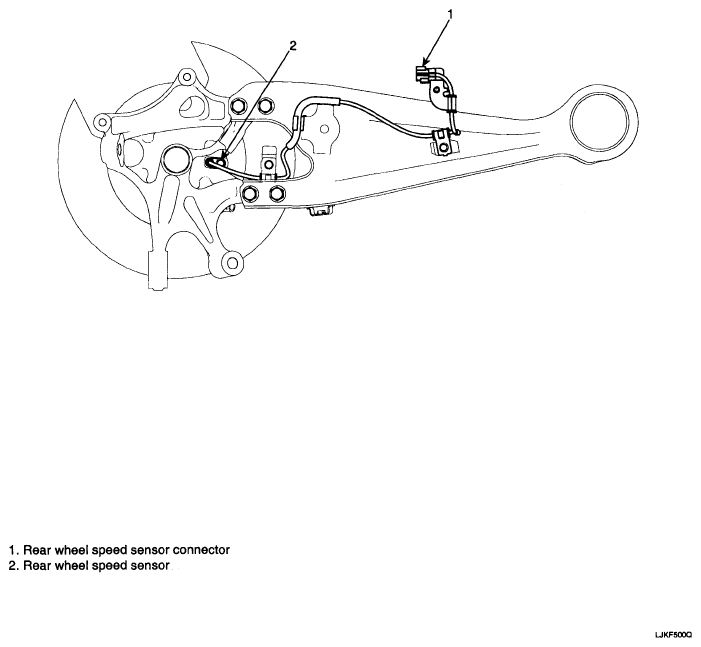

Fig 1: Rear Wheel Speed Sensor Location

G04883912

Courtesy of KIA MOTORS AMERICA, INC.
