Kia
>>
2009
>>
Sorento Base, A5SR1
>>
Repair and Diagnosis
>>
Restraints
>>
Restraints Control Systems
>>
SRS Control Module (Air Bag)
>>
Troubleshooting
>>
B1338: FIS-Center Defect
>>
Schematic Diagrams
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagrams

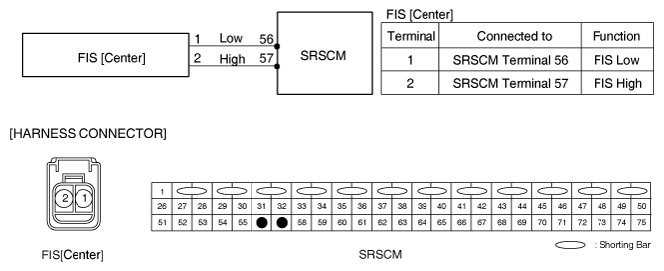

Fig 1: SRCM - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
