Schematic Diagrams

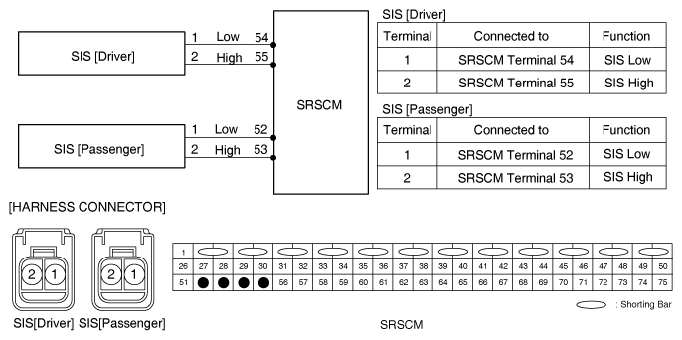

Fig 1: Detecting System For Side Crash - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
