Monitor DTC Status

Check DTC Status
1. Connect scan tool to Data Link Connector (DLC).
2. IG "ON".
3. Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F5(INFO) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.

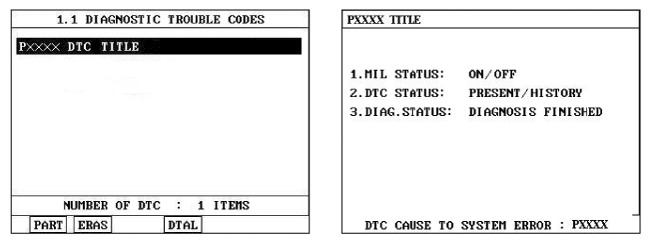

  Fig 1: Screen Display - DTC Title
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is "Present" Fault displayed?
  YES
  - Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
  (If different DTC showed up together, another DTC is repaired first.)

  NO
  - Fault is intermittent caused by ECM memory was not cleared after repair. Go to "VERIFICATION OF VEHICLE REPAIR INSPECTION " procedure.
