Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

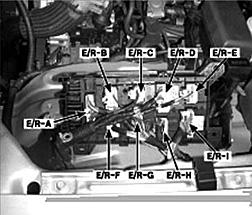

| Engine Room Junction Box | At left side of engine compartment. See Figure. |
| Gasoline Box | Left rear of engine compartment. |

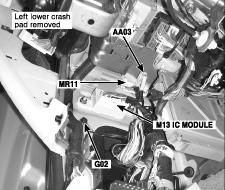

| IC Module | Under left end of dash. See Figure. |

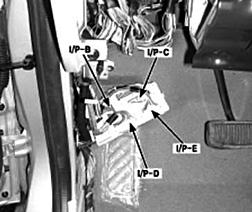

| Instrument Panel Junction Box | Behind left kick panel. See Figure. |
| Relay Box | Behind right end of dash. |
