Hi-Scan (Pro) Check

  1. Turn the ignition switch OFF.
  2. Connect the Hi-scan (pro) to the 16P data link connector located behind the driver's side kick panel.

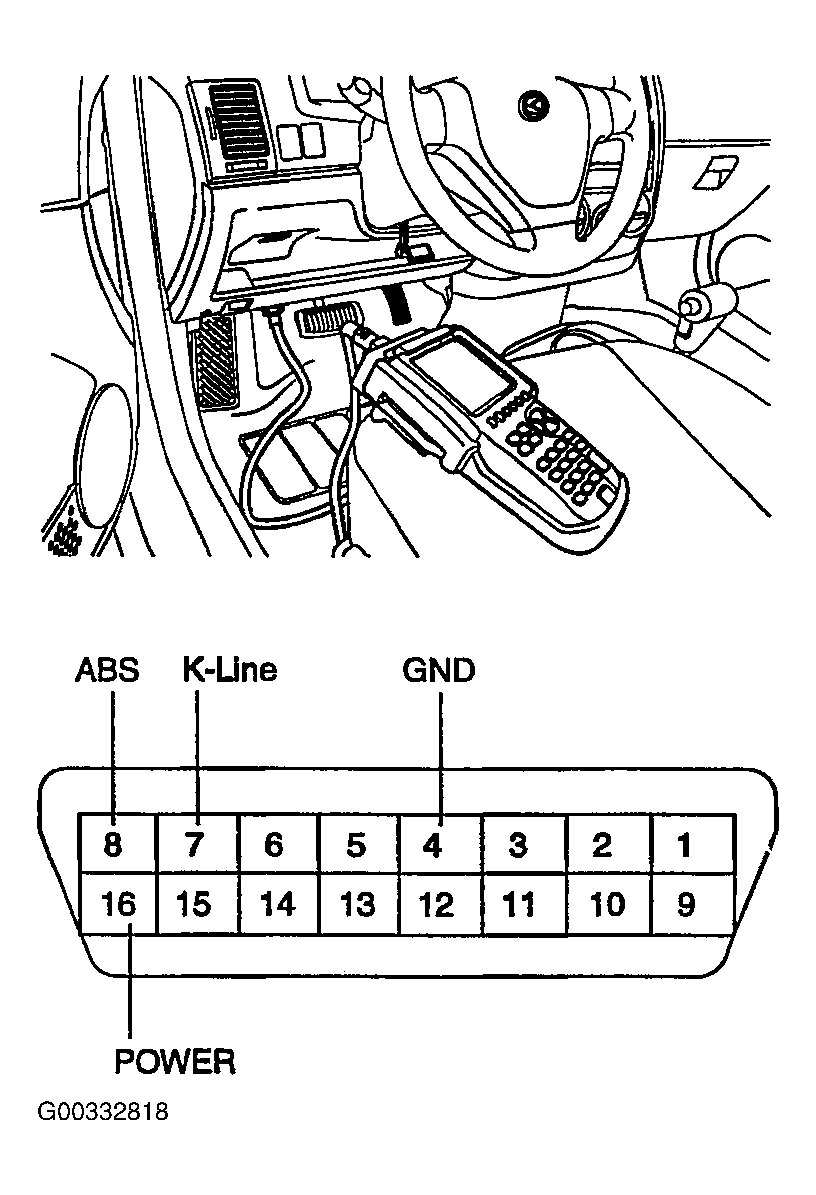

    Fig 1: Identifying Data Link Connector
    G00332818Courtesy of KIA MOTORS AMERICA, INC.
  3. Turn the ignition switch ON.
  4. Check for diagnostic trouble codes using the Hi-scan (pro).
  5. After completion of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-scan (pro).
  6. Disconnect the Hi-scan (pro) from the 16P data link connector.
