Circuit Diagram (2)

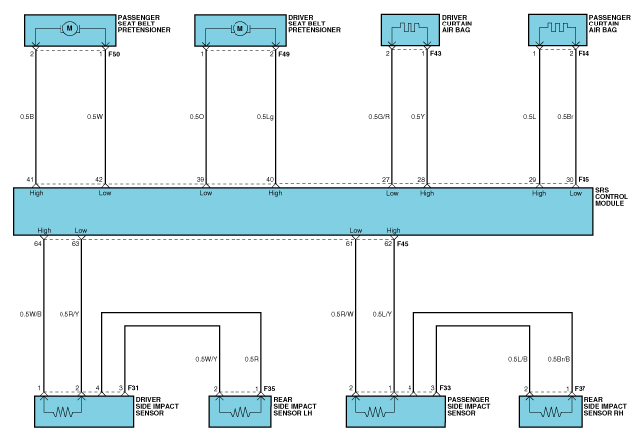

Fig 1: Passenger Seat Belt Pretensioner And Passenger Curtain Air Bag Circuit Diagram
G06400533Courtesy of KIA MOTORS AMERICA, INC.
