Repair Procedures

REMOVAL

1. Removal the engine cover(A).

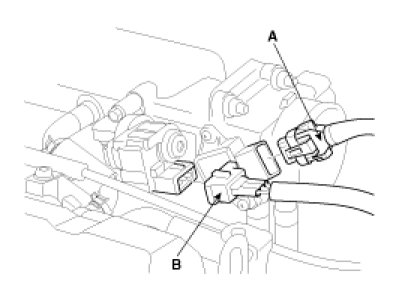

2. Disconnect the throttle position sensor(TPS) connector and the idle speed actuator(ISA) connector(B).

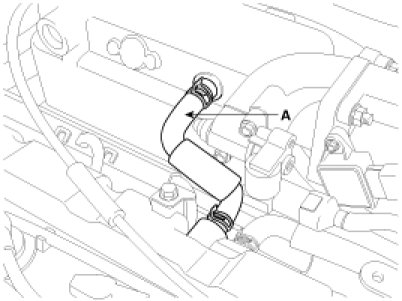

3. Disconnect the positive crankcase ventilation(PCV) hose(A) and the breather hose.




4. Disconnect the accelerator cable.

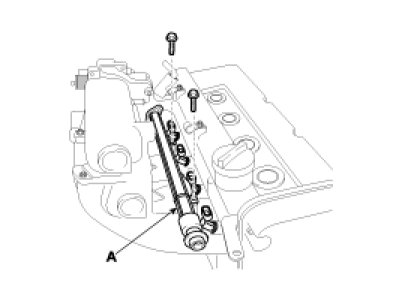

5. Remove the delivery pipe(A).

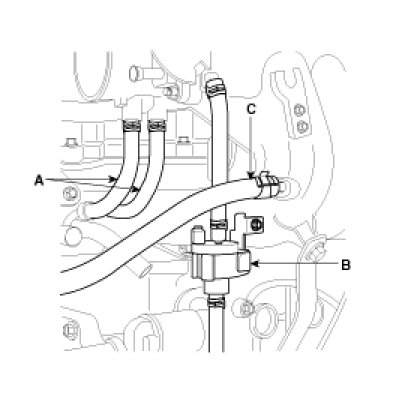

6. Disconnect the heater hose(A), plug control solenoid valve(PCSV) hose(B) and the brake booster hose from the intake manifold and throttle body assembly(C).

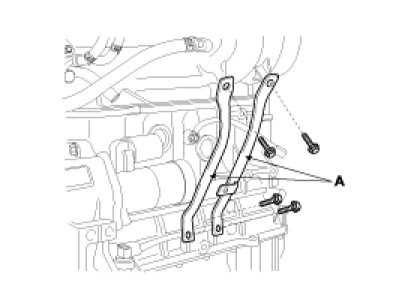

7. Remove the intake manifold stay(A).

Tightening torque
17.7 - 24.5Nm (1.8 - 2.5kgf.m, 13.0 - 18.1lb-ft)





8. Remove the intake manifold assembly(A).

Tightening torque
15.7 - 22.6Nm (1.6 - 2.3kgf.m, 11.6 - 16.6lb-ft)





9. To install, reverse the removal procedure with new gaskets.
