Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures (1 Of 2)
>>
P0133: O2 Sensor Circuit Slow Response (Bank 1/Sensor 1)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

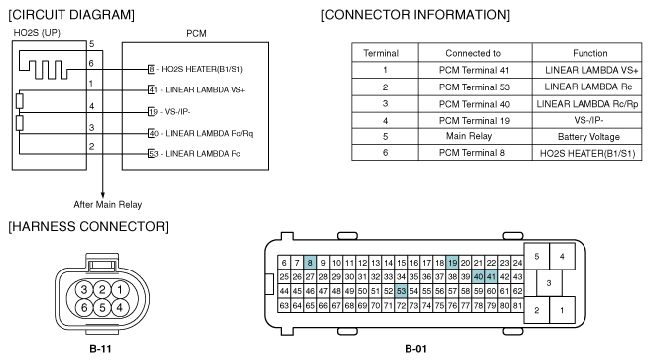

Fig 1: O2 Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
