Signal Waveform

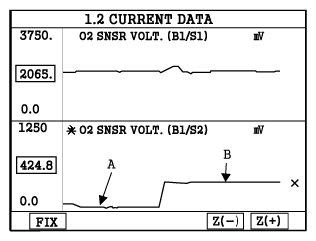

Fig 1: Signal Waveform Graph
G06415002Courtesy of KIA MOTORS AMERICA, INC.

A: Open in Signal circuit: Approx. 0V

B: Normal value with idle after warm up: Above 0.6V
