Monitor Scan Tool Data
- Ignition "ON" & Engine "OFF"
- Disconnect OTS connector

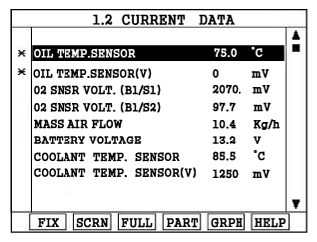

- Connect scan tool and monitor the "OIL TEMP. SENSOR (V)" parameter on the scan tool data list.
Specification: Approx. 5V
- Is OTS parameter near the specified value?
YES
- Possibility of sensor malfunction. Go to "COMPONENT INSPECTION " procedure.
NO
- Possibility of signal circuit short to ground. Go to SIGNAL CIRCUIT INSPECTION .
