Key Lock Assembly

  1. If it is necessary to remove the key lock assembly (A), use a punch to make a groove on the head of the special bolt (B), and then use a screwdriver to remove the key lock assembly mounting bracket (C).

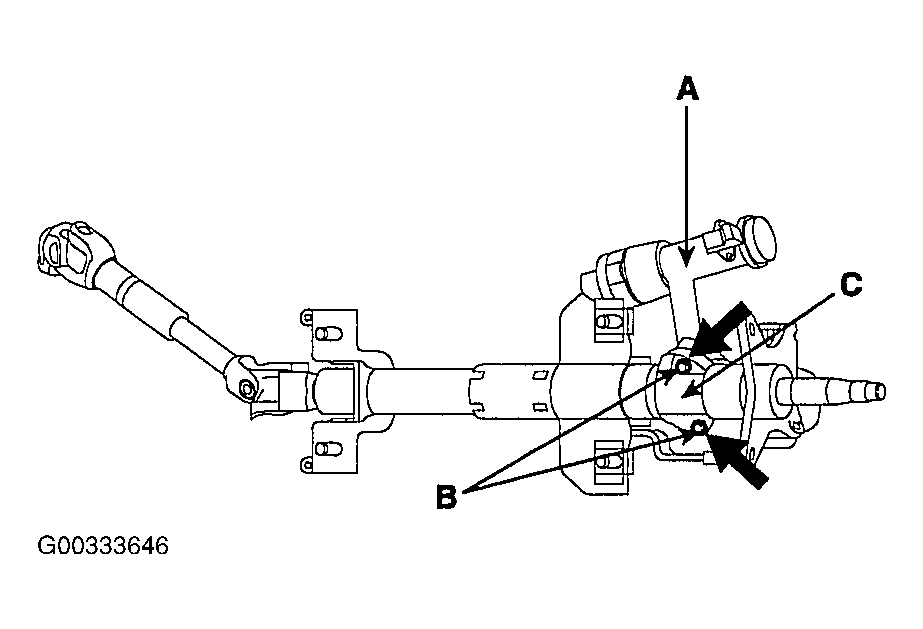

    Fig 1: Identifying Key Lock Assembly Special Bolts
    G00333646Courtesy of KIA MOTORS AMERICA, INC.
  2. Disassemble the key lock assembly (A) from the steering column and shaft assembly (B).

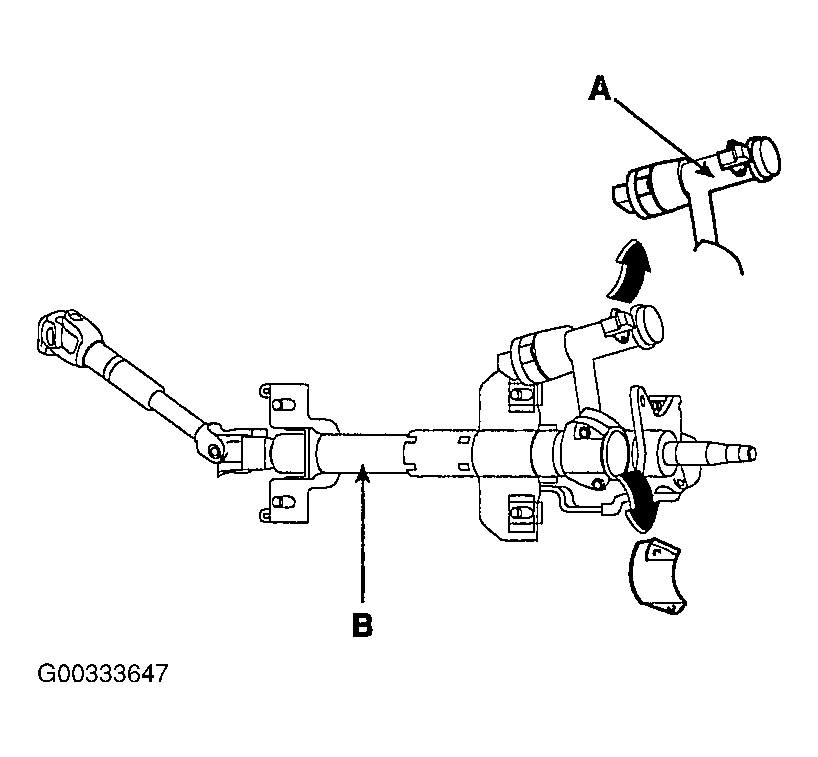

    Fig 2: Removing Key Lock Assembly From Steering Column/Shaft Assembly
    G00333647Courtesy of KIA MOTORS AMERICA, INC.
  3. Reassembly is the reverse of disassembly.
