Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTC Troubleshooting Procedures (2 Of 2)
>>
P2271: O2 Sensor Signal Stuck Rich (Bank 1 Sensor 2)
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

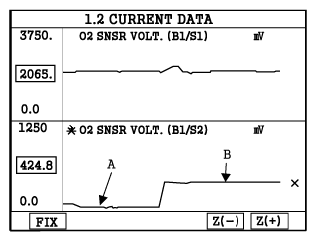

Fig 1: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.
A: Open in Signal circuit: Approx. 0V
B: Normal value with idle after warm up: Above 0.6V
Courtesy of KIA MOTORS AMERICA, INC.
