System
>>
DTC Troubleshooting Procedures (2 Of 2)
>>
P2414: O2 Sensor Exhaust Sample Error (Bank 1 Sensor 1)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

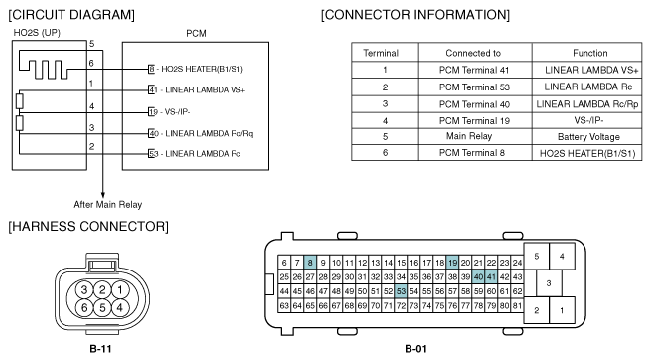

Fig 1: O2 Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
