Repair Procedures: Inspection

Fig 1: Identifying Ignition Switch Connector And Door Warning Switch Connector From Under Steering Column

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the ignition switch connector and door warning switch connector from under the steering column.
Check for continuity between the terminals.
If continuity is not as specified, replace the switch.

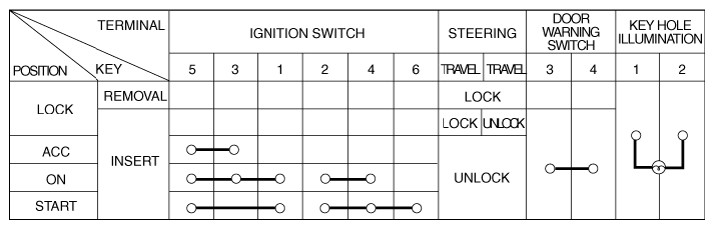

Fig 2: Ignition Switch Terminals Continuity Chart
Courtesy of KIA MOTORS AMERICA, INC.
