Transaxle Oil Temperature Sensor: Removal

Remove the battery terminal.
Lift the vehicle.
Remove the under cover.
Loosen the drain plug (A) and drain the transaxle oil.

Fig 1: Identifying Drain Plug (A)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil pan (A).

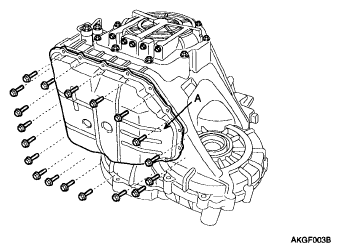

Fig 2: Identifying Oil Pan (A) & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the oil filter (A).

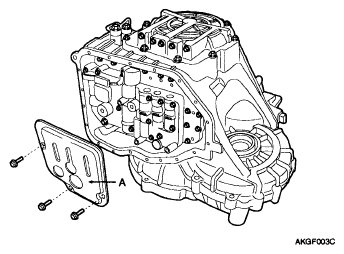

Fig 3: Identifying Oil Filter (A) & Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the valve body.
Disconnect the oil temperature sensor connector (A) from the valve body.

Fig 4: Disconnecting Oil Temperature Sensor Connector (A) From Valve Body (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Disconnecting Oil Temperature Sensor Connector (A) From Valve Body (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
