Transaxle Range (Tr) Switch: Description

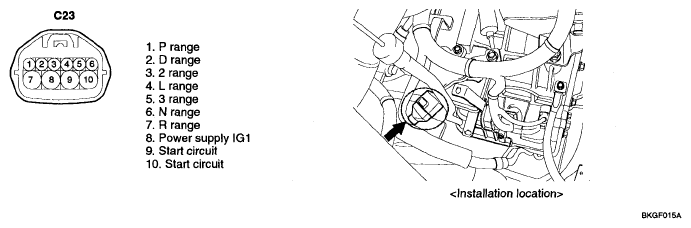

TRANSAXLE RANGE SWITCH DESCRIPTION
| Sensor type |
- Type: ROTARY
- Available temperature range: -40 to 150°C (-40 to 320°F)
- TORQUE: 10-12 N.m (100-120 kgf.cm, 7-8 lb-ft)
|
| Function |
Detect the position of select lever through the contact switch. It makes starting possible in "P" and "N". |
