Transaxle Range (Tr) Switch: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. Refer to AUTOMATIC TRANSAXLE-REMOVAL/INSTALLATION  procedures.
  5. Disconnect the inhibitor switch connector (A).
    Fig 1: Identifying Inhibitor Switch Connector (A)
    G04864717Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the control cable (A) from the manual control lever.

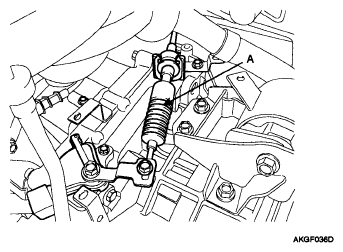

    Fig 2: Identifying Control Cable (A)
    G04864703Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the inhibitor switch (A) and manual control lever (B).
    Fig 3: Identifying Inhibitor Switch (A) And Manual Control Lever (B)
    G04864736Courtesy of KIA MOTORS AMERICA, INC.
