Torque Converter

The torque converter, as the power plant which delivers the power of engine to the automatic transaxle, consists of 3 elements, 2 phases and 1 stage type.

• The flowing section form of the torque converter changes the round type to the flat type to reduce the length of the torque converter.
• The maximum operating degree of the damper clutch installed inside the transaxle increases from 12° to 18° to improve the engine revolution change reduction capability and the fuel consumption

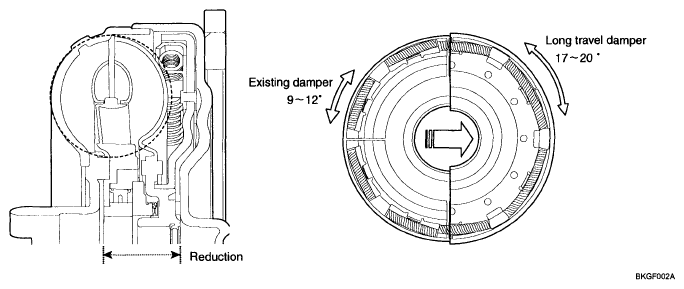

  Fig 1: Identifying Torque Converter Function

  Courtesy of KIA MOTORS AMERICA, INC.
