Trunk Release Control

  1. Trunk Release Control Data Flow

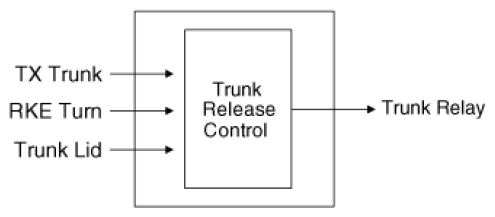

    Fig 1: Trunk Release Control Data Flow Diagram
    G06496180Courtesy of KIA MOTORS AMERICA, INC.
  2. Trunk Release Relay Control
    1. Turn Trunk Release Relay ON during T1 when TX TRUNK or SMK (RKE TRUNK, TRUNK REOPEN) is ON.
    2. If ALL DOOR UNLOCK and TRUNK LID is OFF → ON, Trunk Release Relay is ON during T1. (SMK option)

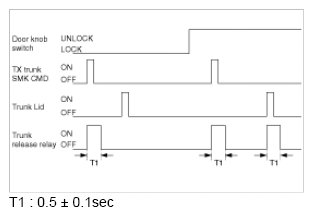

      Fig 2: Trunk Release Relay Control Relay Timing Chart
      G06496181Courtesy of KIA MOTORS AMERICA, INC.
