Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the center air vent (B) using the SST (A) (09840-1M100). (For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)

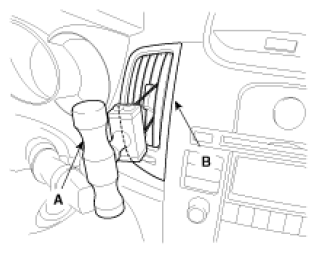

Fig 1: Removing Center Air Vent Using SST (09840-1M100)
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Always use the SST (09840-1M100) to prevent the damage when removing the air vent. (For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)
Remove the crash pad center fascia panel (A).
NOTE: Take care not to scratch the crash pad and related parts.

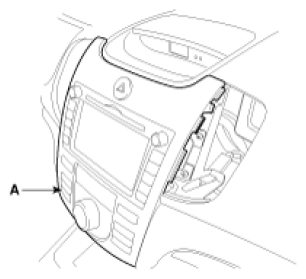

Fig 2: Identifying Crash Pad Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) from the crash pad center fascia panel and heater control unit.

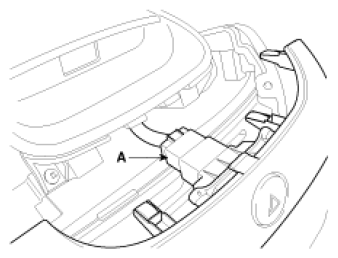

Fig 3: Identifying Crash Pad Center Fascia Panel Connector
Courtesy of KIA MOTORS AMERICA, INC.

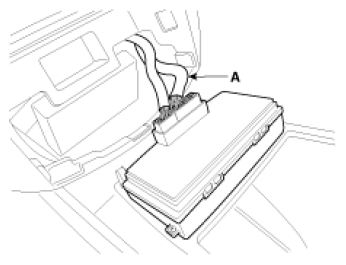

Fig 4: Identifying Heater Control Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the body control module (A) after loosening nuts and disconnecting connector.

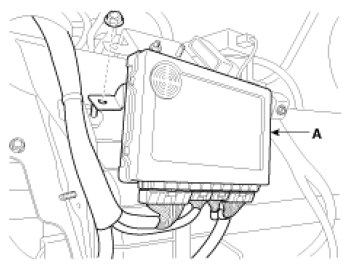

Fig 5: Identifying Body Control Module
Courtesy of KIA MOTORS AMERICA, INC.
