Circuit Diagram

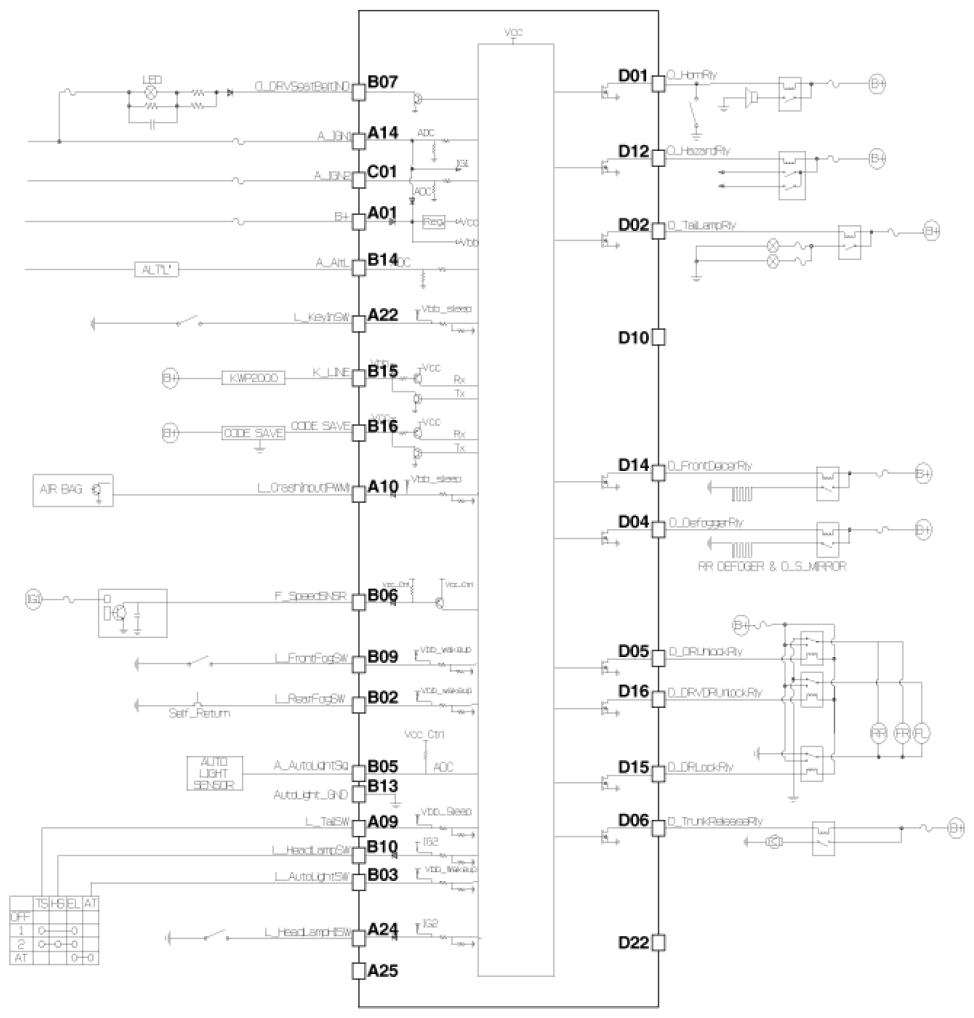

Fig 1: BCM - Circuit Diagram (1 Of 2)
G06496146Courtesy of KIA MOTORS AMERICA, INC.

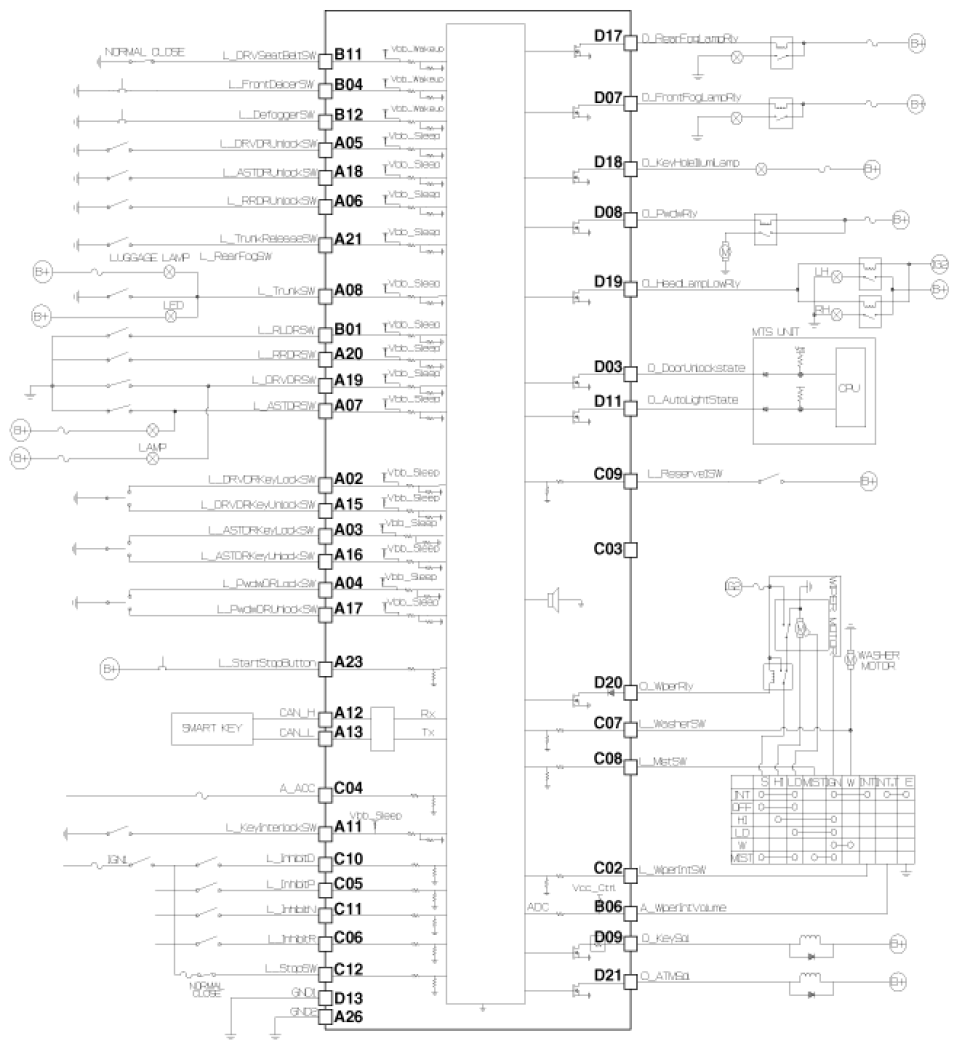

Fig 2: BCM - Circuit Diagram (2 Of 2)
G06496147Courtesy of KIA MOTORS AMERICA, INC.
