ESCL Status Check
Connect the cable of scan tool to the data link connector in driver side crash pad lower panel.
After IG ON, select the "ESCL STATUS INFO".

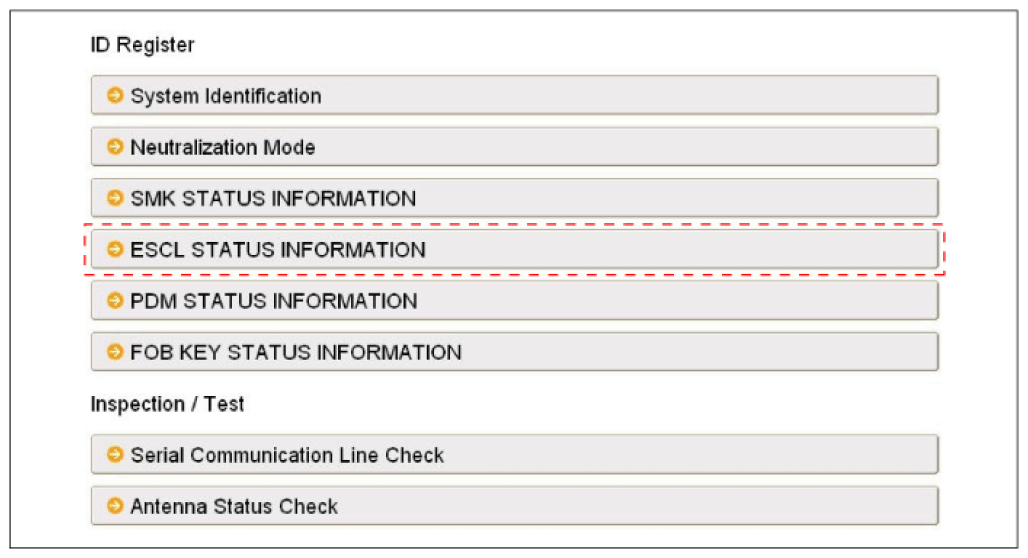

Fig 1: Screen Display - Selecting ESCL Status Information
Courtesy of KIA MOTORS AMERICA, INC.

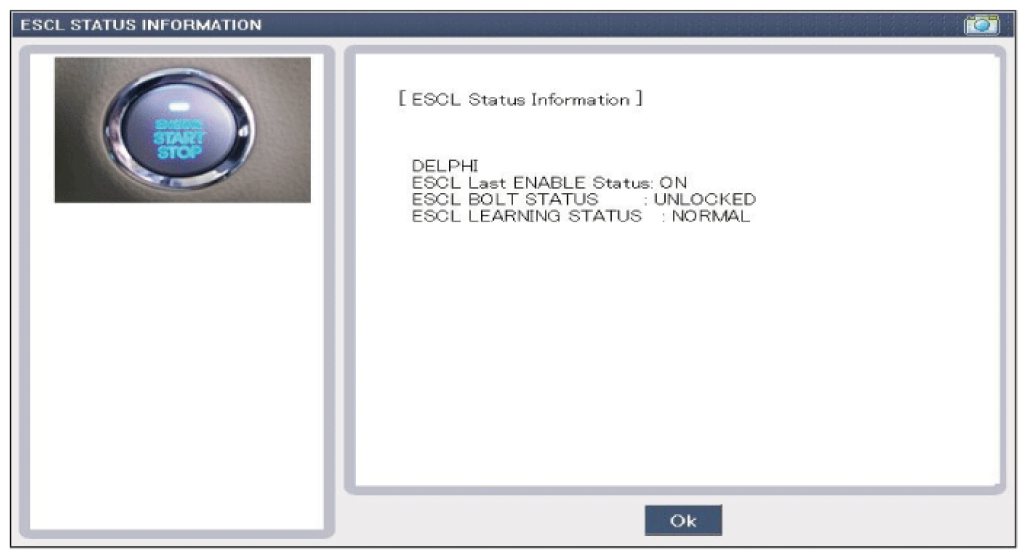

Fig 2: Screen Display - Viewing ESCL Status Information
Courtesy of KIA MOTORS AMERICA, INC.
