Neutralization Status Check

Connect the cable of scan tool to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

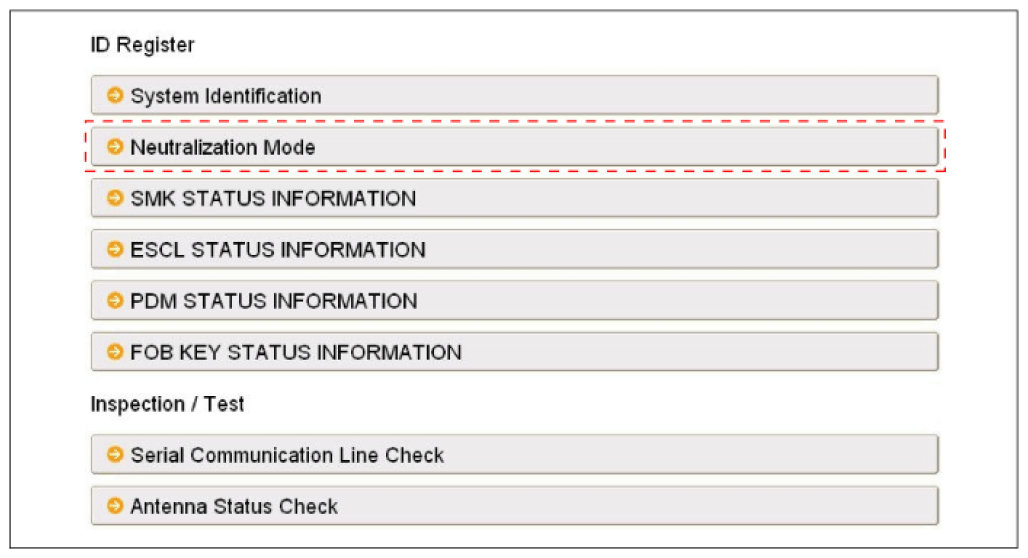

Fig 1: Screen Display - Selecting Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

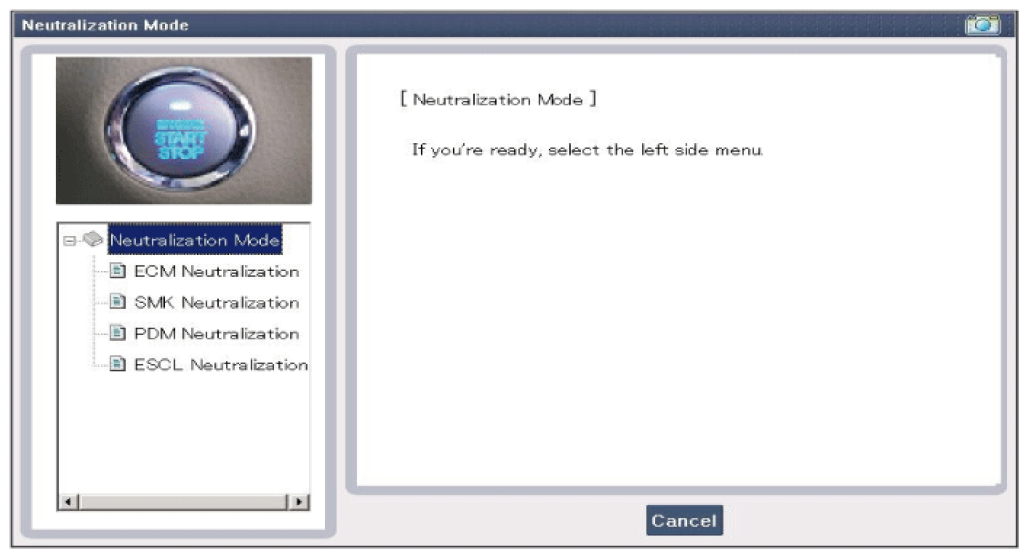

Fig 2: Screen Display - Neutralization Mode Menu
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - Selecting ECM Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

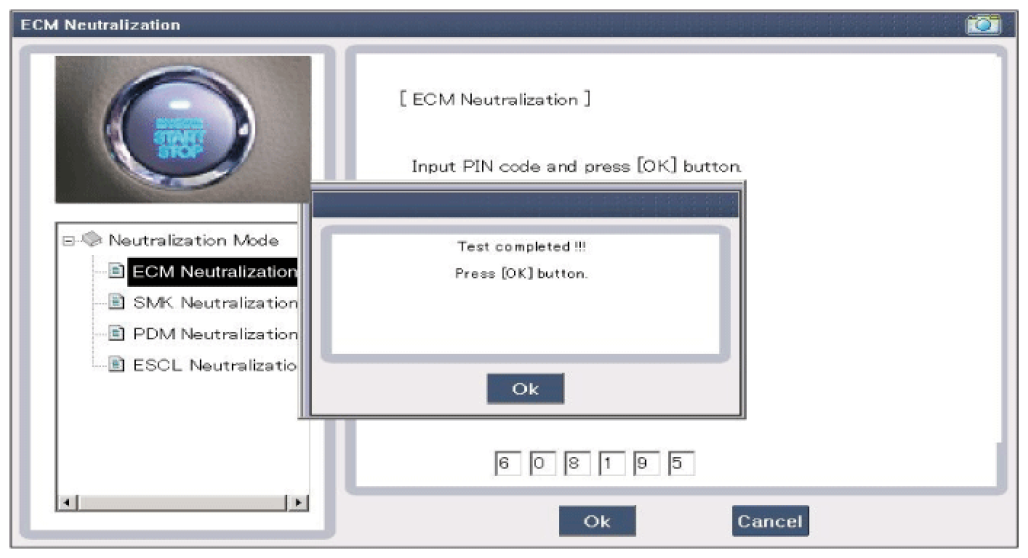

Fig 4: Screen Display - ECM Neutralization Completed
Courtesy of KIA MOTORS AMERICA, INC.

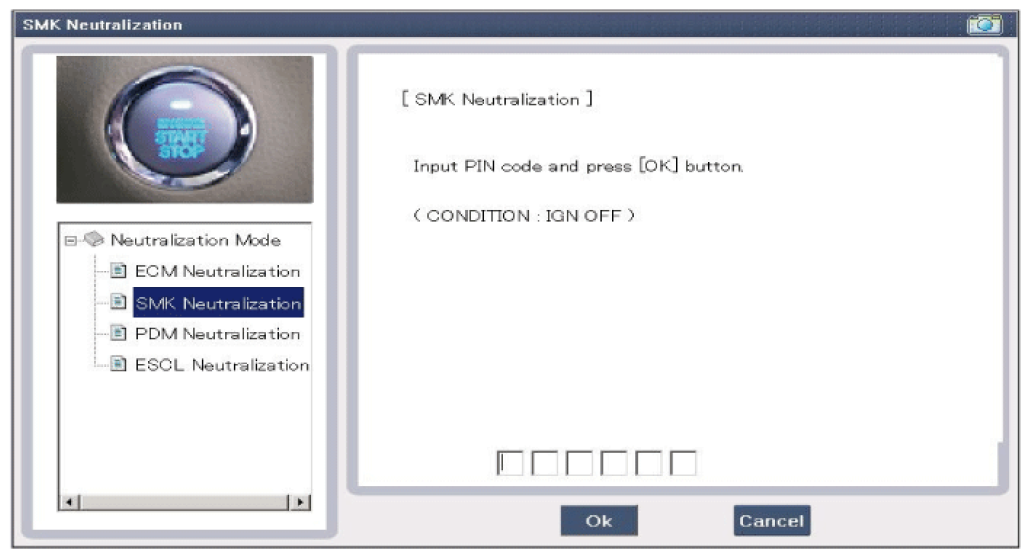

Fig 5: Screen Display - Pin Code Input For SMK Neutralization (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - Pin Code Input For SMK Neutralization (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

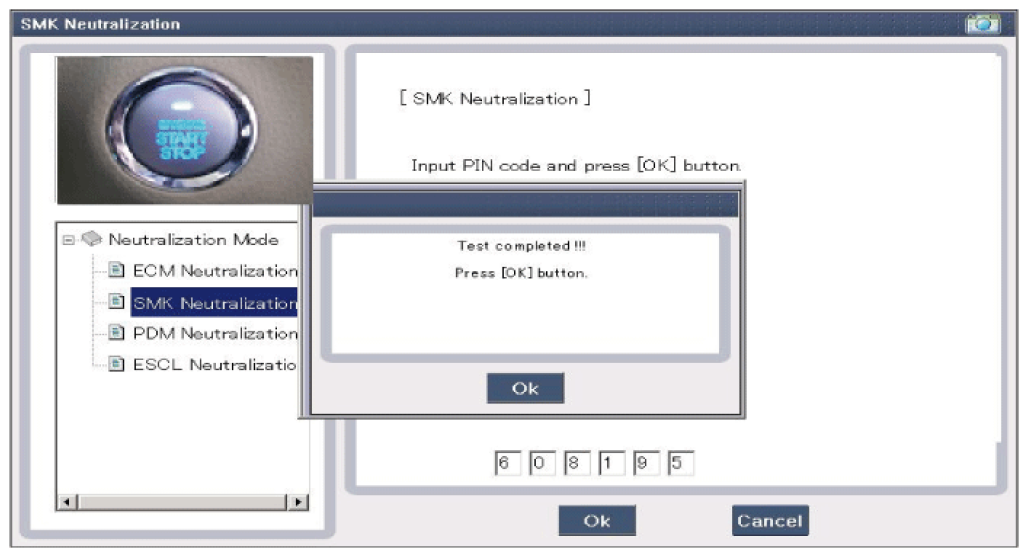

Fig 7: Screen Display - SMK Neutralization Completed
Courtesy of KIA MOTORS AMERICA, INC.

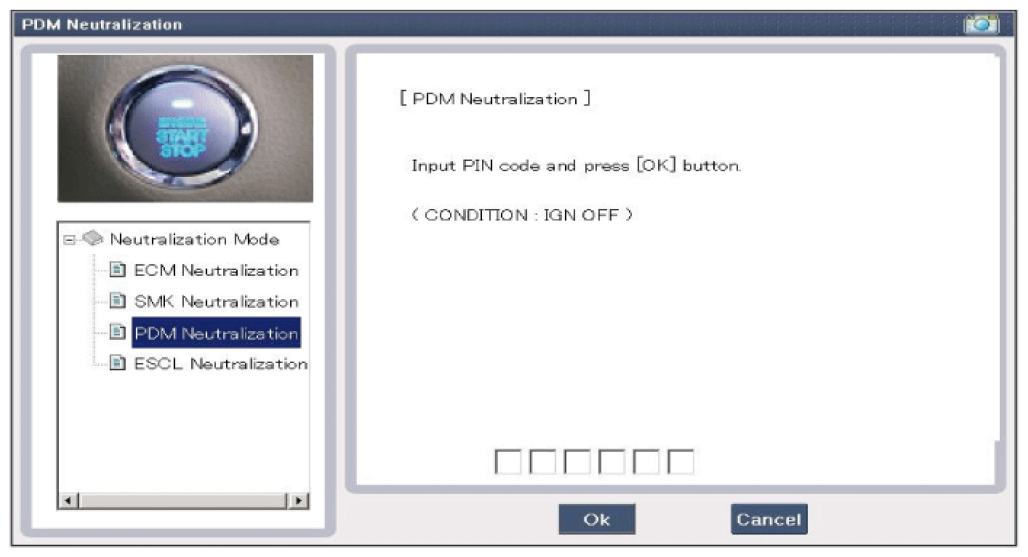

Fig 8: Screen Display - Pin Code Input For PDM Neutralization (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

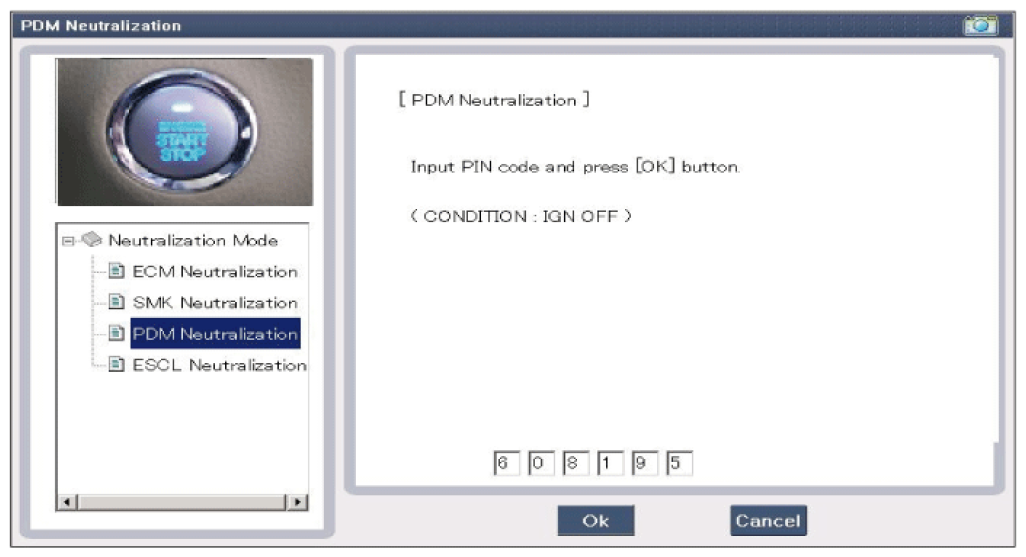

Fig 9: Screen Display - Pin Code Input For PDM Neutralization (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

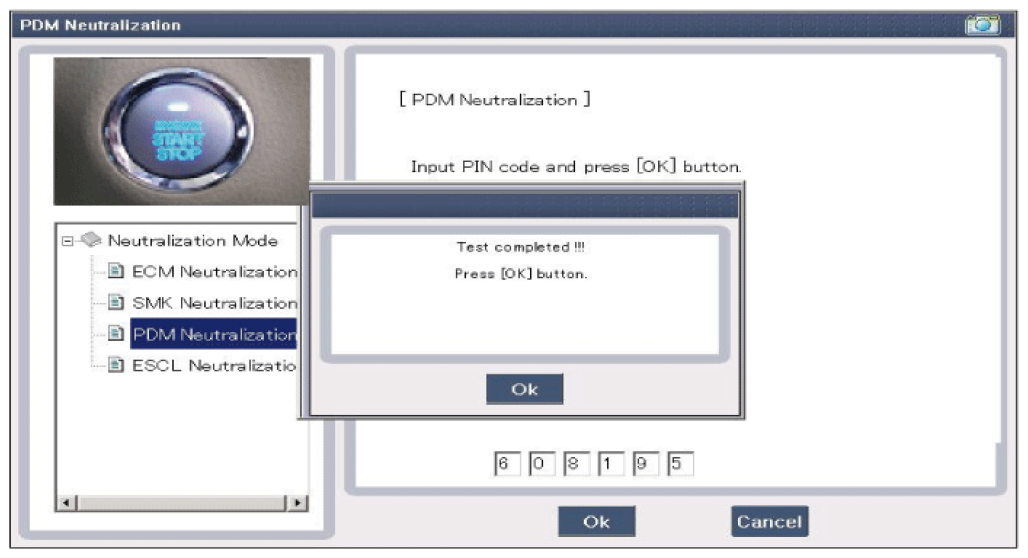

Fig 10: Screen Display - PDM Neutralization Completed
Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Screen Display - Pin Code Input For ESCL Neutralization (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

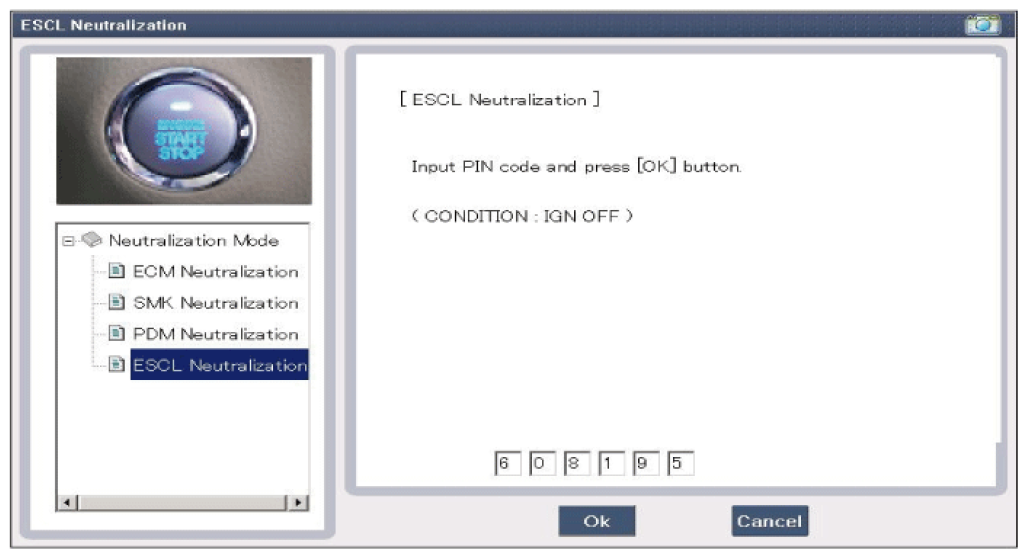

Fig 12: Screen Display - Pin Code Input For ESCL Neutralization (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

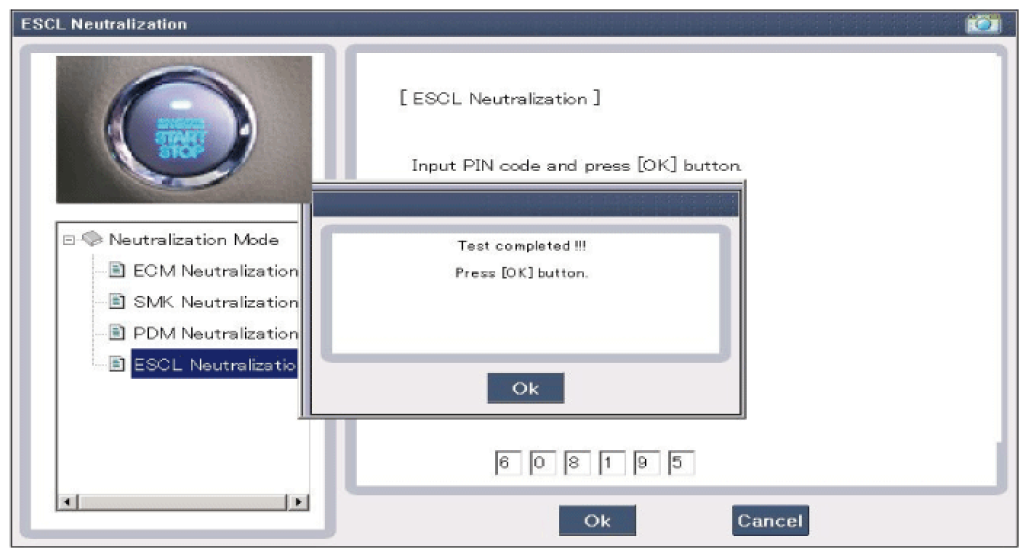

Fig 13: Screen Display - ESCL Neutralization Completed
Courtesy of KIA MOTORS AMERICA, INC.
