RF Receiver

Disconnect the negative (-) battery terminal.

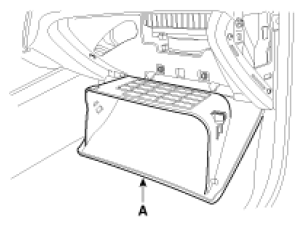

Remove the glove box (A).
(For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)

Fig 1: Identifying Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
Remove the glove box housing (A) after loosening the mounting screws.

Fig 2: Identifying Glove Box Housing & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

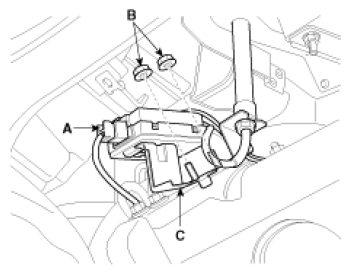

Disconnect the connector (A) after loosening the RF receiver (C) nuts (B).

Fig 3: Identifying Connector, RF Receiver, & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
