Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

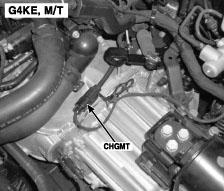

| CHGMT (Black, 6 Pin) | Rear of engine. See Figure. |
| EM11 (White, 31 Pin) | Left kick panel. See Figure. |
| FC11 (White, 16 Pin) | Right kick panel. See Figure. |

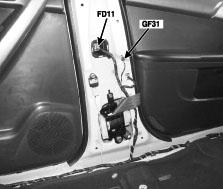

| FD11 (White, 31 Pin) | Left "B" pillar. See Figure. |

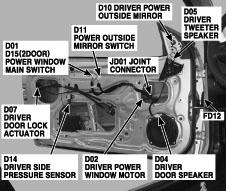

| FD12 (Black, 36 Pin) | Driver door. See Figure. |

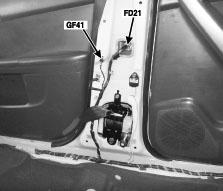

| FD21 (White, 15 Pin) | Right "B" pillar. See Figure. |

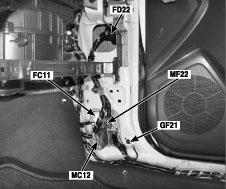

| F022 (Black, 36 Pin) | Right kick panel. See Figure. |
| MC12 (Gray, 30 Pin) | Right kick panel. See Figure. |

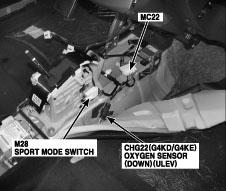

| MC22 (White, 22 Pin) | Center console. See Figure. |

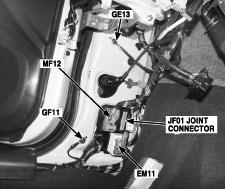

| MF12 (Gray, 30 Pin) | Left kick panel. See Figure. |
| MF22 (White, 33 Pin) | Right kick panel. See Figure. |

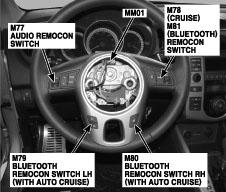

| MM01 (Pink, 12 Pin) | Steering column. See Figure. |

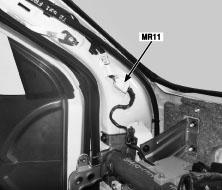

| MR11 (White, 10 Pin) | Right rear of vehicle. See Figure. |
