WCS Reset

Ignition OFF, connect scantool.
With Ignition ON & Engine OFF, select Weight Classification System and select "WCS RESET " mode.
You will see comments and current weight measured.
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

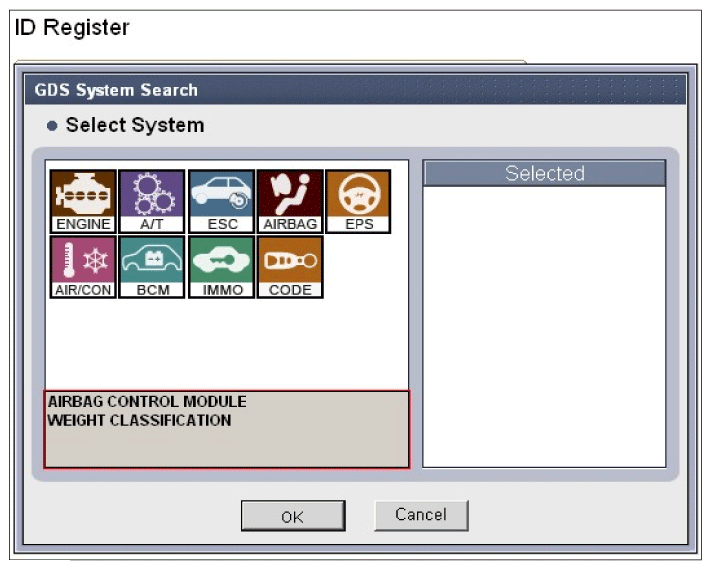

Fig 1: Scantool Display - ID Register - Selecting System
Courtesy of KIA MOTORS AMERICA, INC.

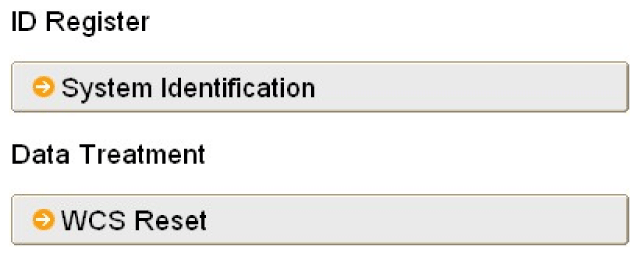

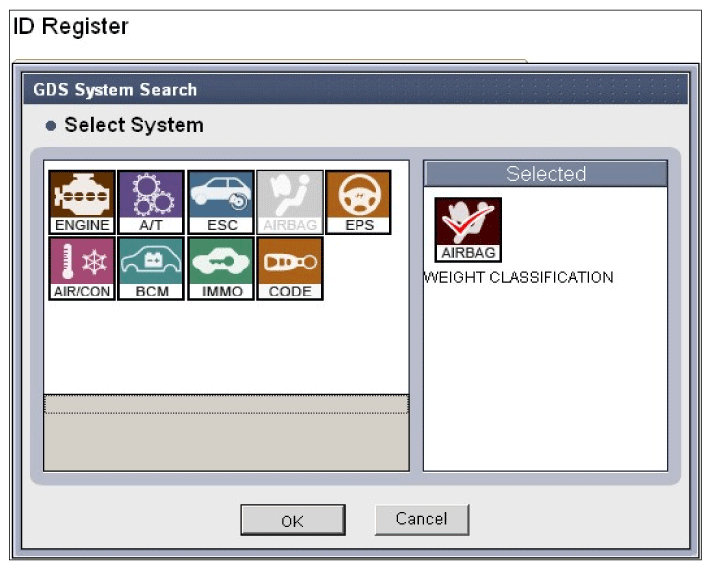

Fig 2: Scantool Display - ID Register - Selecting Weight Classification System
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - ID Register - Resetting Weight Classification System
Courtesy of KIA MOTORS AMERICA, INC.

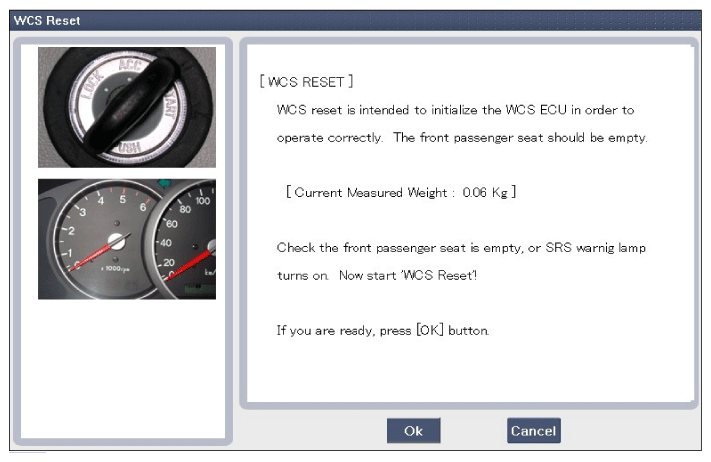

Fig 4: Scantool Display - WCS Reset Screen
Courtesy of KIA MOTORS AMERICA, INC.

Specification : Approx. - 4.0 kg ~ + 4.0 kg
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

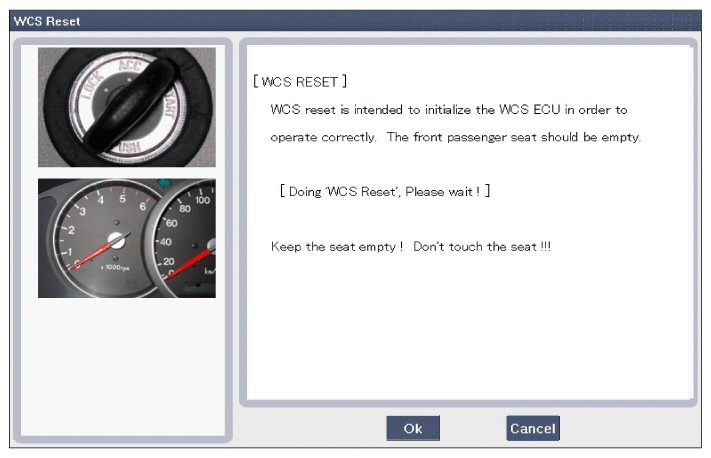

Fig 5: Scantool Display - Resetting Weight Classification System
Courtesy of KIA MOTORS AMERICA, INC.

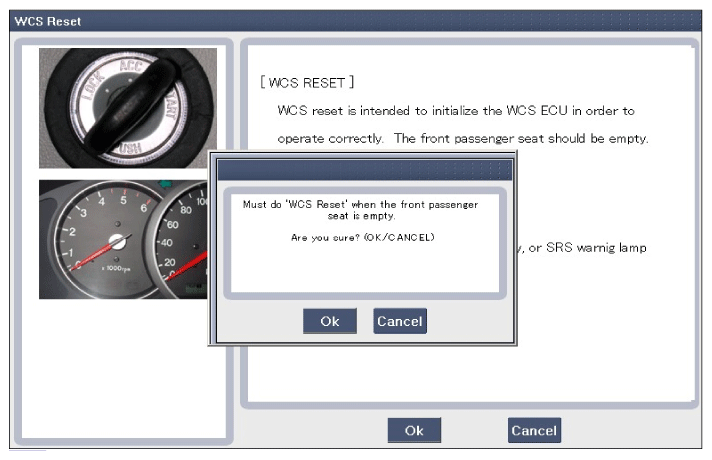

Fig 6: Scantool Display - WCS Reset Screen
Courtesy of KIA MOTORS AMERICA, INC.
If the 'WCS Reset' operation is finished successfully, you will see the following screen as shown in Fig 7.

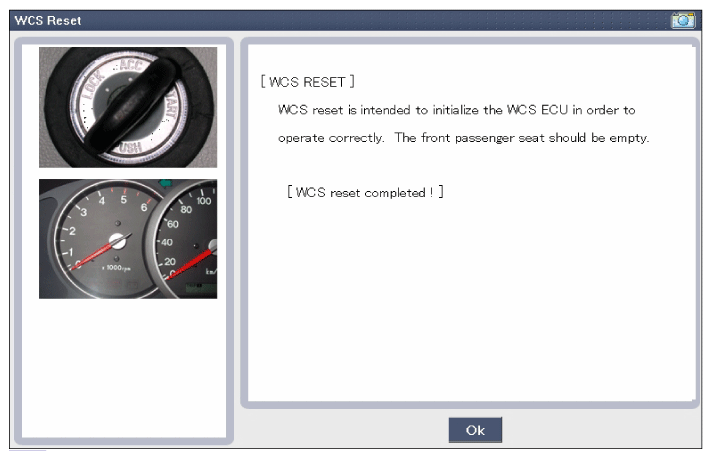

Fig 7: Scantool Display - WCS Reset Completed
Courtesy of KIA MOTORS AMERICA, INC.

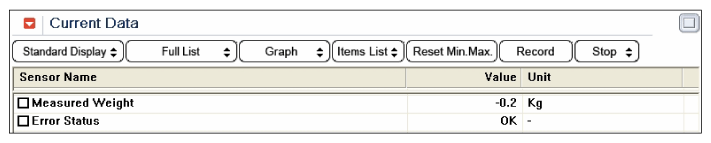

Fig 8: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.

Specification : Approx. - 4.0 kg ~ + 4.0 kg
Is the displayed parameter the same as the above 7 figure?
YES
- WCS reset is performed correctly
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the appropriate troubleshooting procedure.
