Monitor Scantool Data

Ignition OFF, connect scantool.
With Ignition ON & Engine OFF, select "Diagnostic Trouble Codes (DTC)" mode.
Monitor diagnostic trouble code and present of trouble code.
Using a scan tool, clear the DTC.

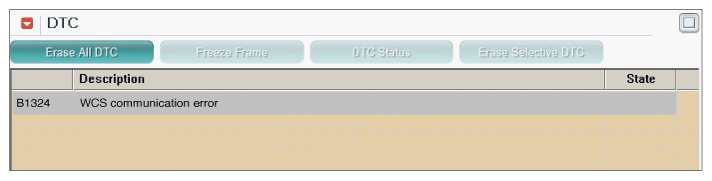

Fig 1: Scantool Display - DTC
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC present?
YES
- Go to "WIRE HARNESS INSPECTION " procedure.
NO
- Intermittent failure, system is OK at this moment. Do not change WCS (= Weight Classification System).
- Fault is intermittent, caused by poor contact in the connector/wiring harness, or was repaired and SRSCM memory was not cleared.
  Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

  Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure and Go to "WCS RESET " procedure.
