Monitor Scantool Data

Ignition OFF, connect scantool.
With Ignition ON & Engine OFF, select "Current Data" mode.
After the driver seat is moved fully rearward, monitor the "STPS-Driver Status" parameter on the Scantool.
Specification : Driver seat is fully moved to rear: Rearward

Driver seat is fully moved to front: Forward.

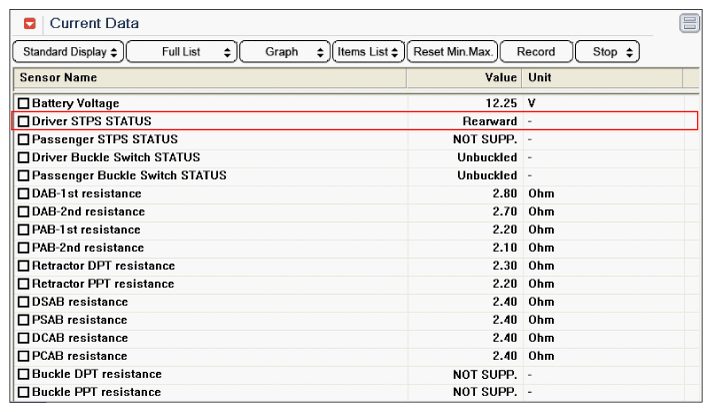

Fig 1: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC present?
YES
- Go to "WIRE HARNESS INSPECTION " procedure.
NO
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that the fault is intermittent, caused by poor contact in the part's connector and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
  Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
