Monitor Scantool Data
- Ignition OFF, connect scantool.
- With Ignition ON & Engine OFF, select "Current Data" mode.

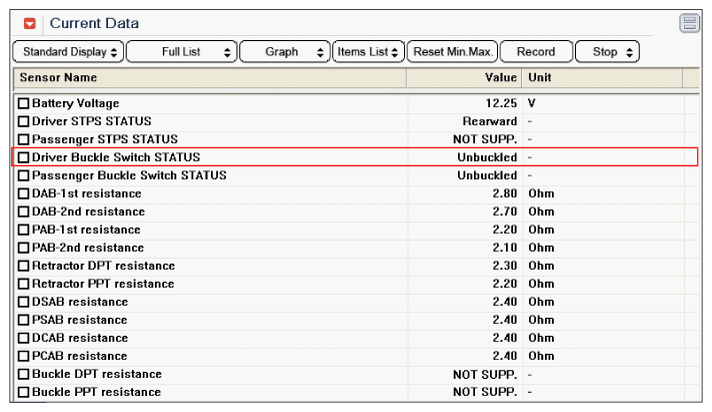

- Monitor the "Driver Buckle Switch status" parameter on the Scantool.
Specification : Driver Buckle Switch on: Buckled, Driver Buckle Switch off: Unbuckled
- Is parameter displayed within specifications?
YES
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that the fault is intermittent, caused by poor contact in the part's connector and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "WIRE HARNESS INSPECTION " procedure.
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that the fault is intermittent, caused by poor contact in the part's connector and/or SRSCM connector, or was repaired and SRSCM memory was not cleared.
