Components and Components Location: Components(2)

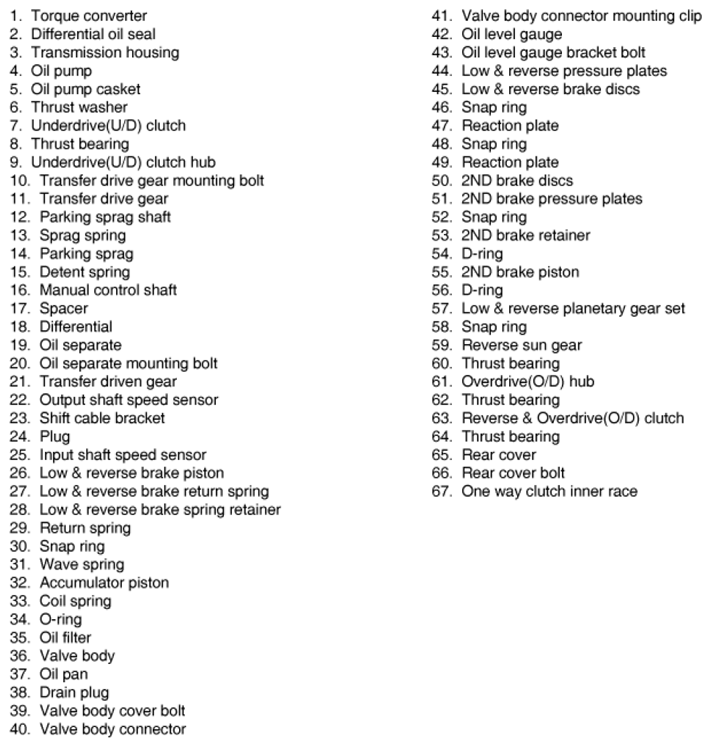

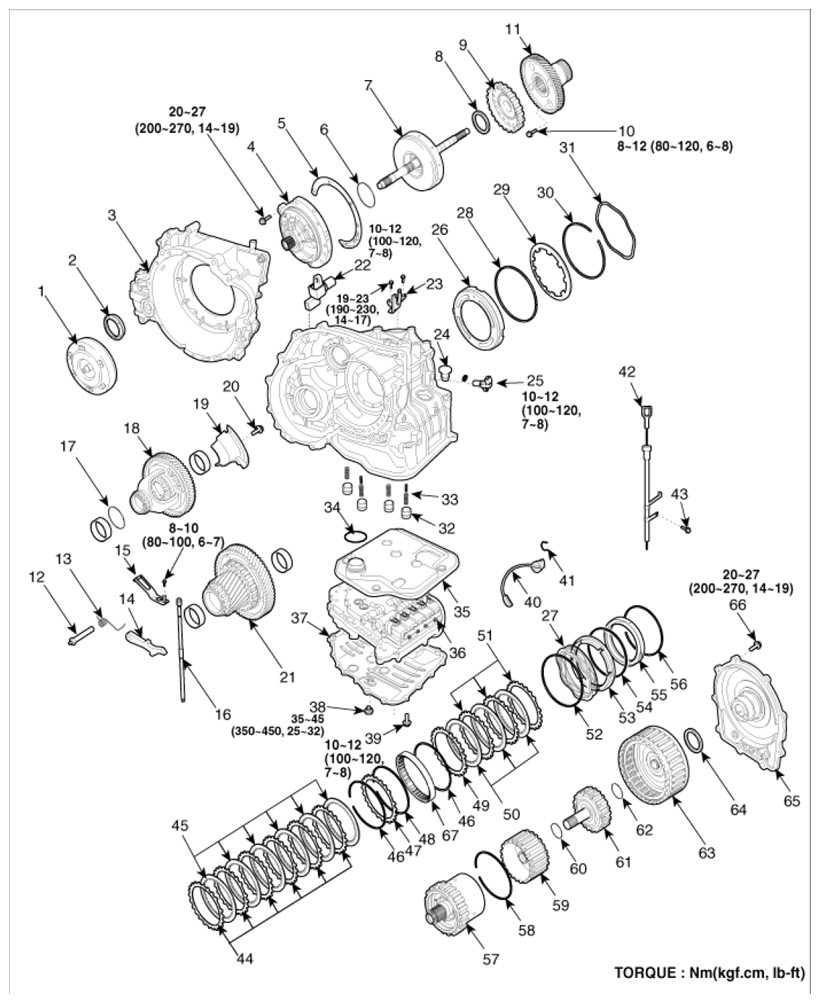

Fig 1: Exploded View Of Automatic Transaxle With Torque Specifications (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Exploded View Of Automatic Transaxle (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
