Components and Components Location: Components

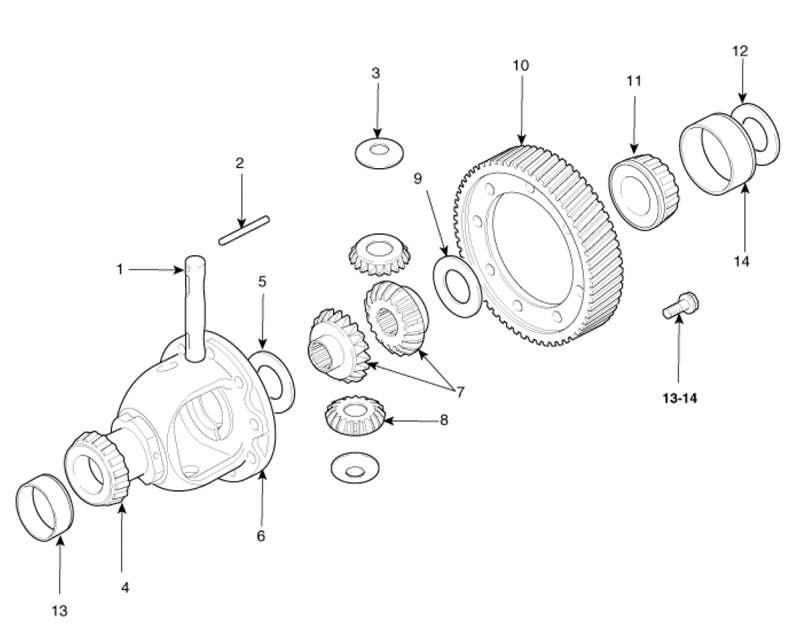

Fig 1: Exploded View Of Differential
G06798737Courtesy of KIA MOTORS AMERICA, INC.
