Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the lower panel (A).
(For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)

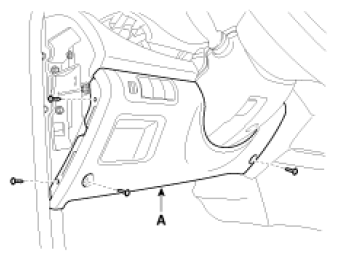

Fig 1: Identifying Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening a nut.

Fig 2: Identifying SMARTRA Unit
Courtesy of KIA MOTORS AMERICA, INC.
