Antenna Status Check

  1. Connect the cable of scan tool to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

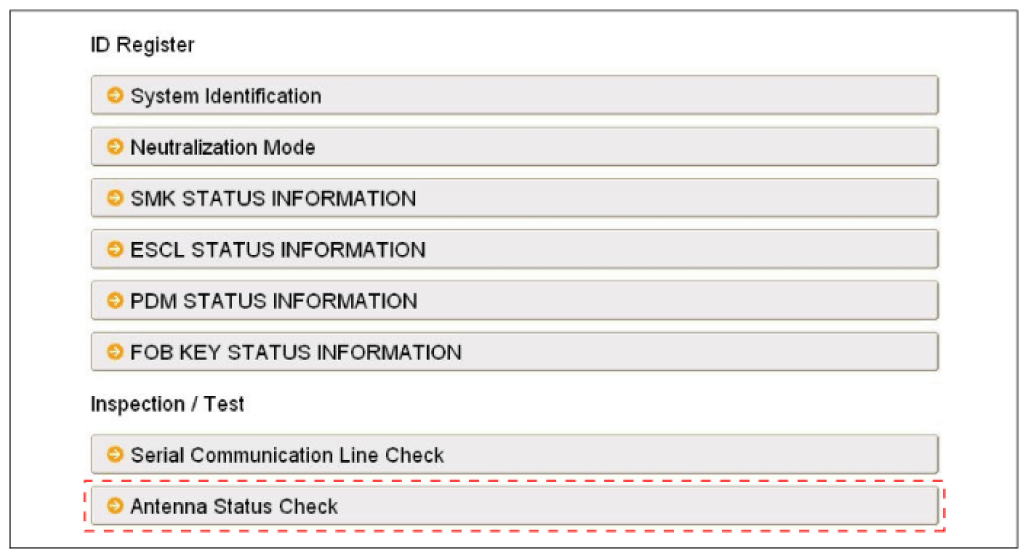

    Fig 1: Screen Display - Selecting Antenna Status Check
    G06496055Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

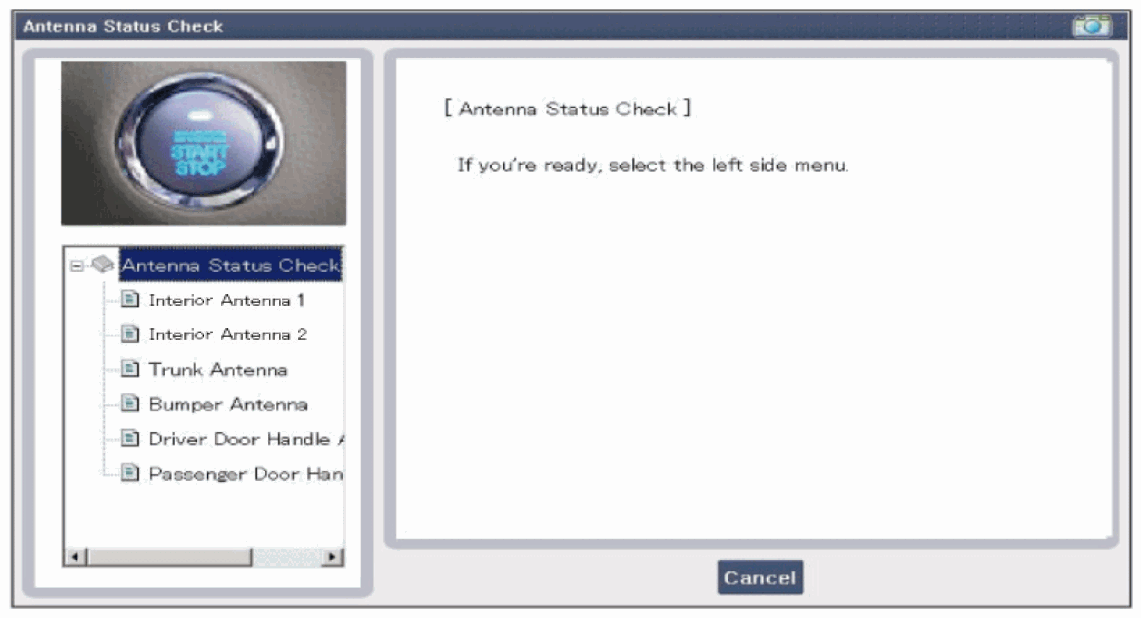

    Fig 2: Screen Display - Antenna Status Check Menu
    G06496056Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a scan tool.

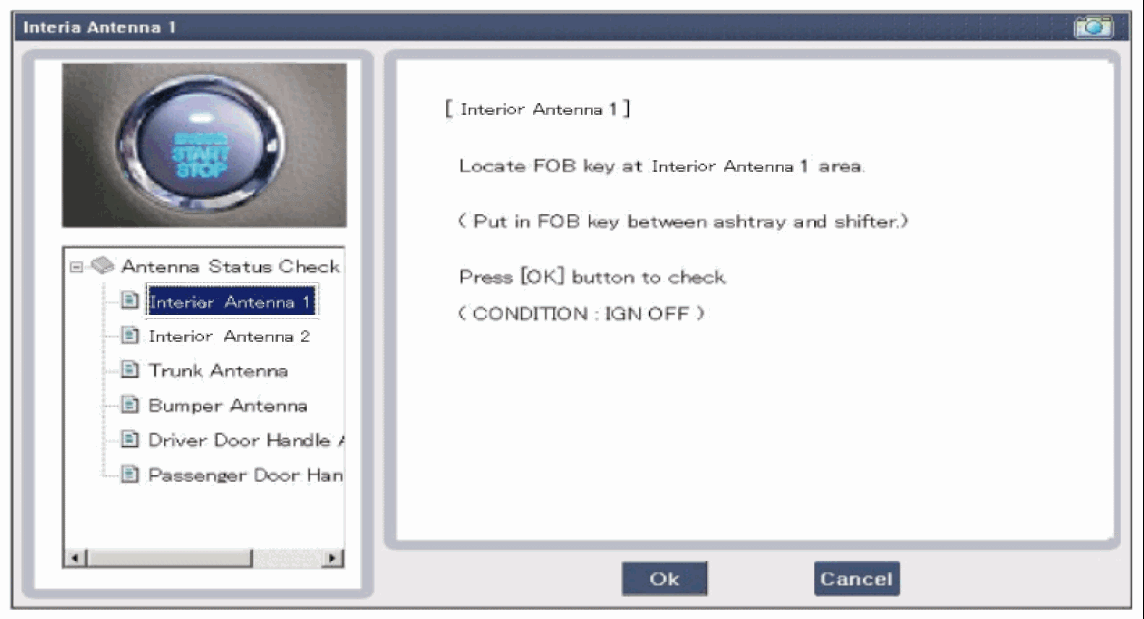

    Fig 3: Screen Display - Interior Antenna 1 Status Check
    G06496057Courtesy of KIA MOTORS AMERICA, INC.

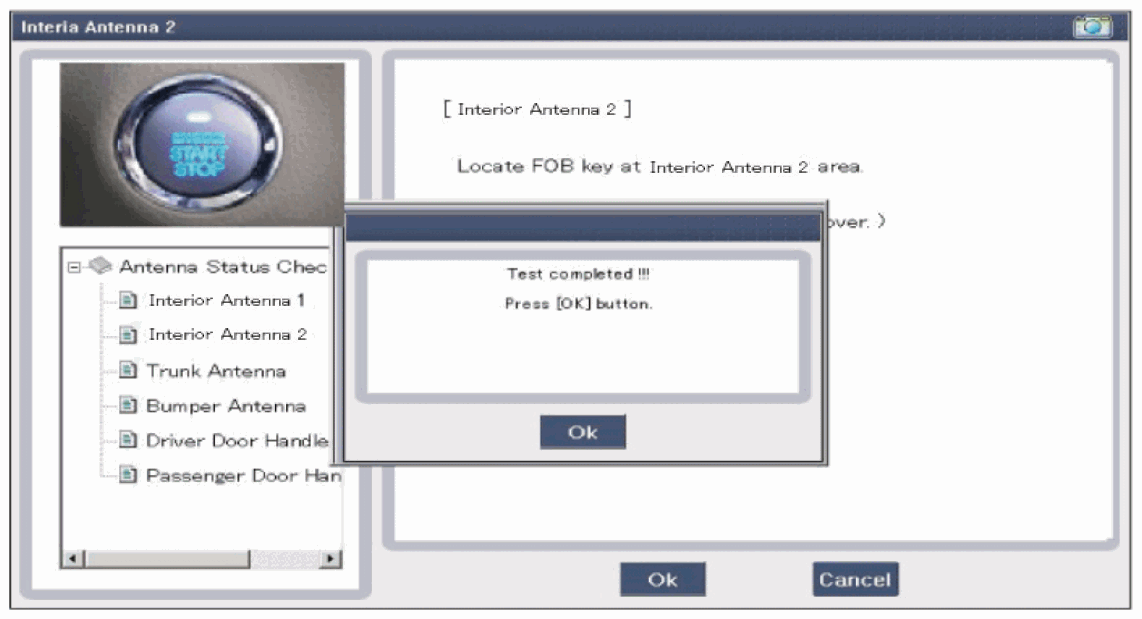

    Fig 4: Screen Display - Interior Antenna 2 Status Check
    G06496058Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR Antenna 1
    2. INTERIOR Antenna 2
    3. Trunk antenna
    4. BUMPER/Trunk Antenna
    5. DRV_DR Antenna
    6. AST_DR Antenna
