Interior 1 Antenna

Disconnect the negative (-) battery terminal.
Remove the floor console (A).
(For Coupe, refer to CONSOLE . For Sedan, refer to CONSOLE .)

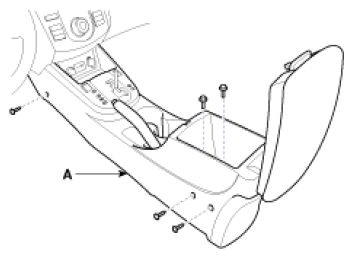

Fig 1: Identifying Floor Console
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the interior 1 antenna (A) nuts (2EA) located in front of the console.

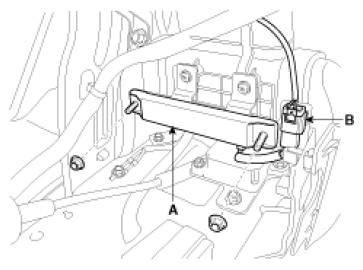

Fig 2: Identifying Interior 1 Antenna & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
