Interior 2 Antenna

Disconnect the negative (-) battery terminal.
Remove the floor console (A).
(For Coupe, refer to CONSOLE . For Sedan, refer to CONSOLE .)

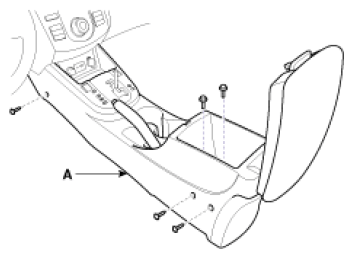

Fig 1: Identifying Floor Console
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the interior 2 antenna connector (B) located at the console rear side, then remove the interior 2 antenna (A) after loosening nuts (2EA).

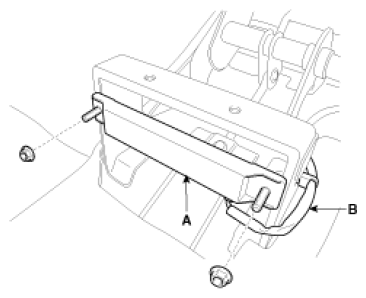

Fig 2: Identifying Interior 2 Antenna, Connector, & Nuts
Courtesy of KIA MOTORS AMERICA, INC.
