Floor Console Replacement

[M/T]

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Put on gloves to protect your hands.

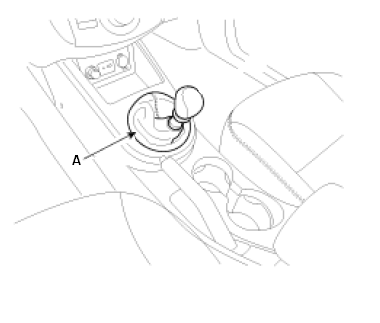

Using a screwdriver or remover, disconnect the boot (A).

Fig 1: Identifying Boot
Courtesy of KIA MOTORS AMERICA, INC.

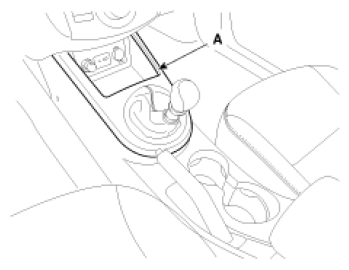

Using a screwdriver or remover, remove the console upper cover (A).

Fig 2: Identifying Console Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

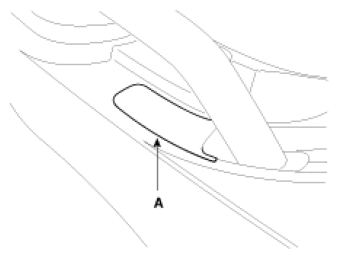

Remove the parking brake cover (A).

Fig 3: Identifying Parking Brake Cover
Courtesy of KIA MOTORS AMERICA, INC.

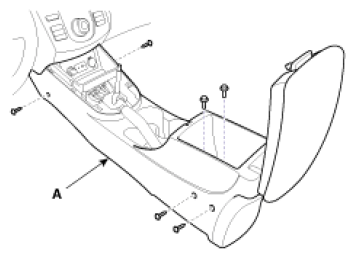

After loosening the console mounting screws, remove the floor console assembly (A).

Fig 4: Identifying Floor Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.

[A/T]

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Put on gloves to protect your hands.

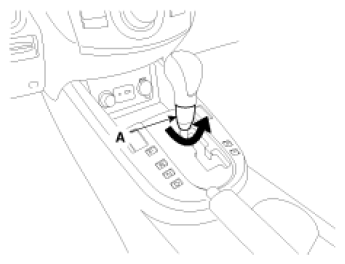

Disconnect the cover (A).

Fig 5: Disconnecting Cover
Courtesy of KIA MOTORS AMERICA, INC.

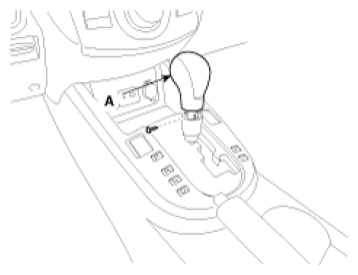

Remove the knob (A).

Fig 6: Identifying Knob
Courtesy of KIA MOTORS AMERICA, INC.
Remove the parking brake cover (A).

Fig 7: Identifying Parking Brake Cover
Courtesy of KIA MOTORS AMERICA, INC.

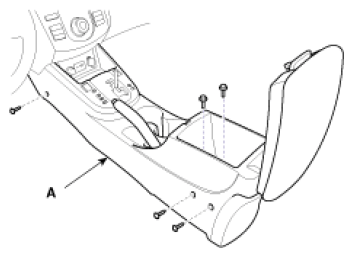

After loosening the console mounting screws, remove the floor console assembly (A).

Fig 8: Identifying Floor Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
