Components and Component Locations: Components

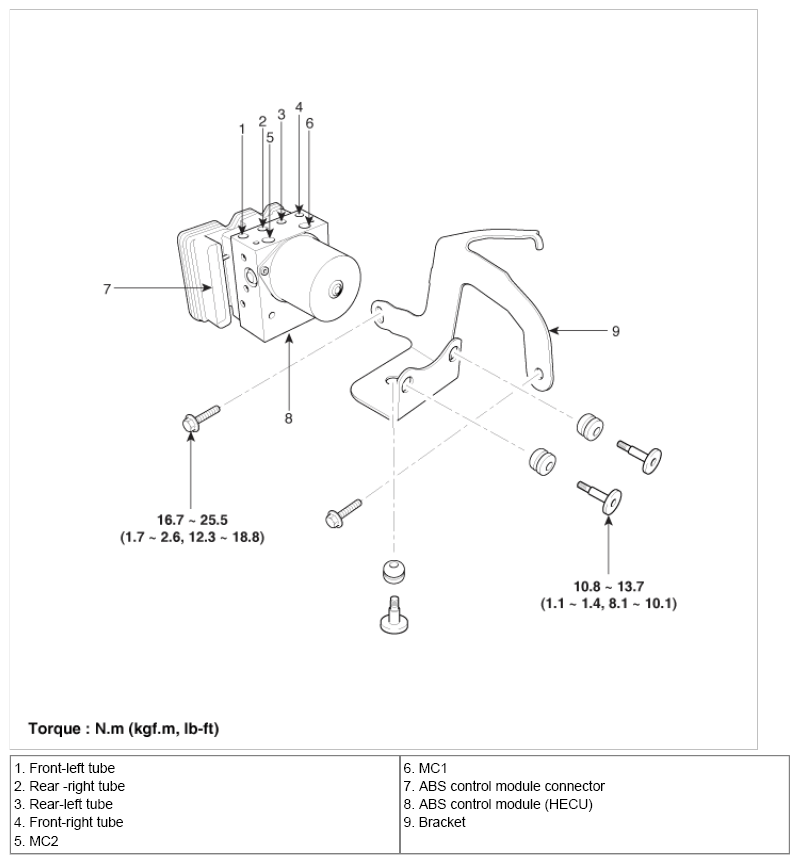

Fig 1: ABS Control Module Replacement Components With Torque Specifications
G06494862Courtesy of KIA MOTORS AMERICA, INC.
