Components and Component Locations: Components

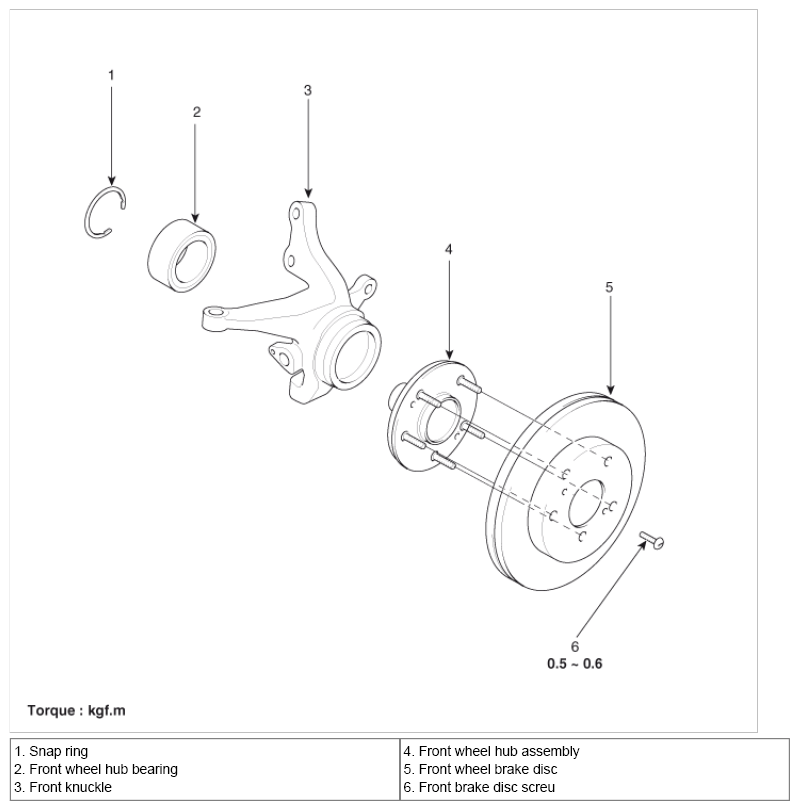

Fig 1: Front Axle Assembly Replacement Components With Torque Specifications
G06495340Courtesy of KIA MOTORS AMERICA, INC.
