Components and Component Locations: Components

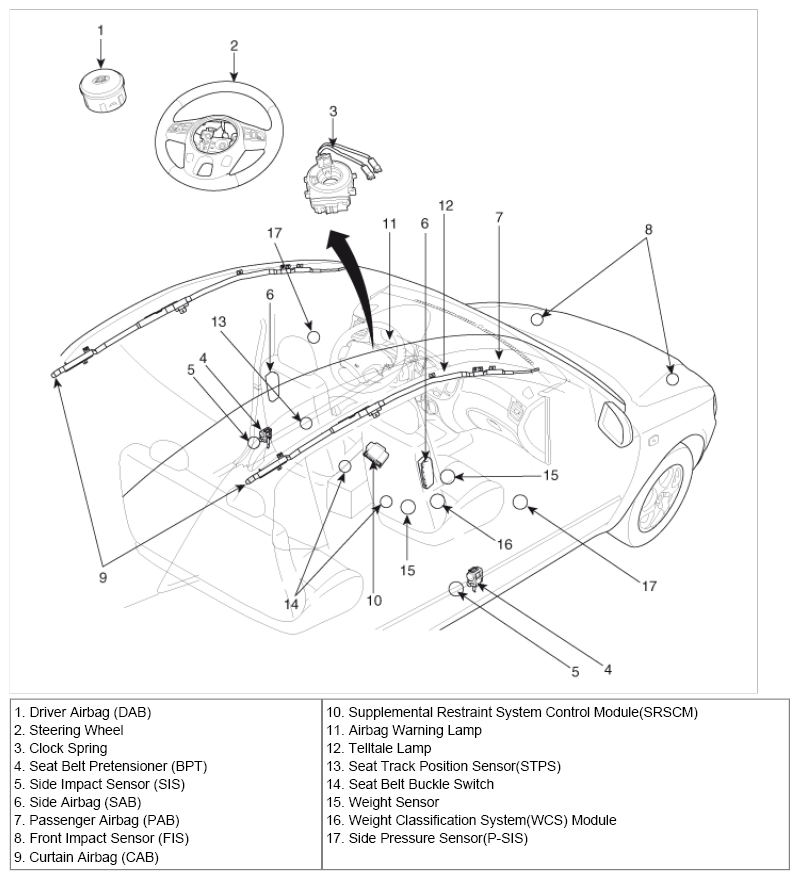

Fig 1: Locating Airbag System Components
G06495524Courtesy of KIA MOTORS AMERICA, INC.
