Repair procedures: Installation

Installation is the reverse of removal.

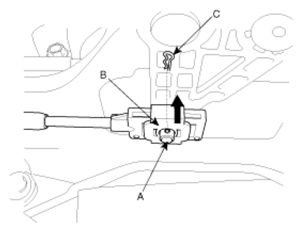

Move the slide clip (B) of guide member (A) in the direction as shown in Fig 1.
NOTE: Adjust the slide clip fit into the select lever moving the slide clip in the direction shown (C).

Fig 1: Moving Slide Clip Of Guide Member
Courtesy of KIA MOTORS AMERICA, INC.

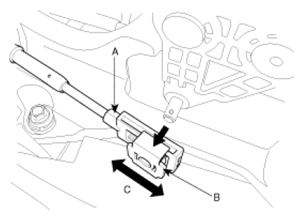

Install the guide member (A) of the select cable (B).

Fig 2: Installing Guide Member Of Select Cable
Courtesy of KIA MOTORS AMERICA, INC.
Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).
NOTE: Insert the slide clip in the direction as shown in Fig 3.

Fig 3: Identifying Slide Clip, Select Lever Pin, & Snap Pin
Courtesy of KIA MOTORS AMERICA, INC.
